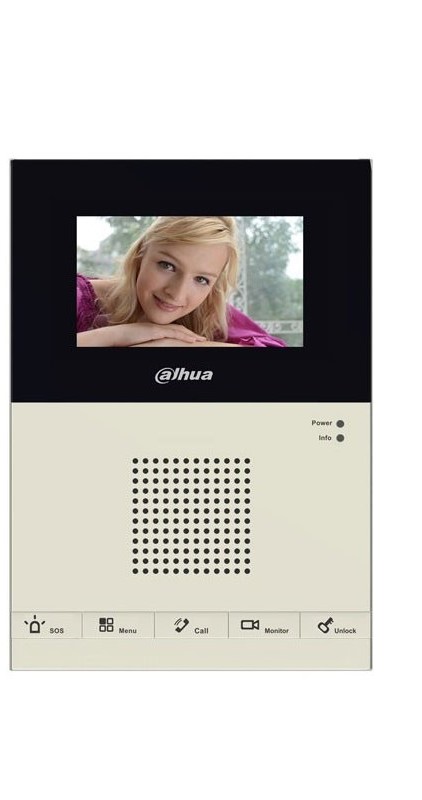

Intercom Monitor/Analog - Dahua VTH1200CS.
Features:
• 4.3” TFT LCD screen, with outstanding effect.
• Easy to use with big buttons.
• Color Video phone, support hand-free calls.
• Support monitoring, video talk, unlock function
• Support Information check, can receive Message from guard office
• Directly notice to guard office for emergency
• Compatible to up to 4 security sensors( burglar, fire, gas leakage, etc)
Specification
| Mode | DH-VTH1200CS | |
| System | Main Processor | NEC MCU |
| Operation Interface | Simple OSD message | |
| Input Device | Mechanical keys, 5 | |
| Video | Video Input | 1-ch CVBS analog video |
| Video Display | 4.3” color LCD, resolution: 480*272 | |
| Monitoring | Support monitoring with monitor button | |
| Audio | Audio Input | 1-ch microphone input (Omni-directional electrets) 1-ch handset pickup input |
| Audio Output | 1-ch loudspeaker output 1-ch handset speaker output | |
| Bidirectional Talk | 1-ch bidirectional talk, two way | |
| Network Function | Net Control | Monitor & Unlock |
| Call management center for emergency | ||
| RS485 bus | ||
| Remotely upgrade | ||
| Interface | Net Interface | RJ45 (non-Ethernet) plug connected with distributor, including power supply, AV and control signal |
| RS485 | Bus control and software upgrading | |
| DC Power | 24V | |
| System Upgrading | Remote network upgrading | |
| General | Power | 24V |
| Power Consumption | Standby ≤1W?max ≤5W | |
| Temperature | -5℃－＋55℃ | |
| Humidity | 20%－90% | |
| Dimensions | 220.1mm*156.3mm*12.1mm (L*W*T); | |
| Weight | 0.45Kg; | |
| Installation Method | Installed on 86 box sheet metal bracket. | |
