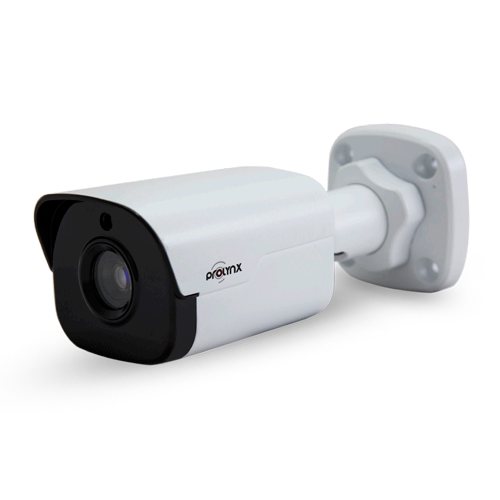

Outdoor 4 MP WDR Network IR Mini Bullet Camera IP - PROLYNX PL-4NBC23.
Day/night functionality.
Smart IR , up to 30 m (98 ft) IR distance.
Optical glass window with higher light transmittance.
IR anti-reflection window to increase the infrared transmittance.
3D DNR (Digital Noise Reduction)
9:16 corridor format.
IP66.
| Camera | : |
|---|---|
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens | 3.6mm@F1.8 Angle of view(H): 90.5° |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| S/N | >55dB |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| VIDEO | : |
| Max. Resolution | 2592×1520 |
| Video Compression | H.265/H.264/MJPEG |
| Frame Rate | 4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps, 3MP(2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| OSD | Up to 8 OSDs |
| Motion Detection | Up to 2 areas |
| Privacy Mask | Up to 4 areas |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP,DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP |
| Compatible Integration | ONVIF, API |
| INTERFACE | : |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| GENERAL | : |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Dimensions (L × W × H) | 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |
