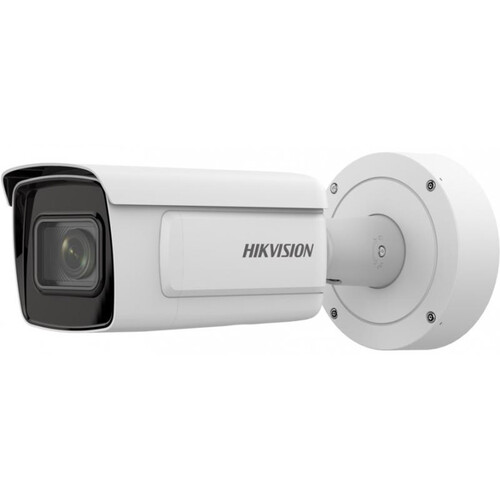

HikVision/4K/DeepinView Moto Varifocal Bullet Camera/100M

https://tamyeez.odoo.com/web/image/product.template/10659/image_1920?unique=5e32a9f
(تقييم 0)

3,750.00 QR 3750.0 QAR 3,750.00 QR

3,750.00 QR

Not Available For Sale


هذه التركيبة غير موجودة.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Hikvision 4K DeepinView Moto Varifocal Bullet Camera - 100M.

4k DeepinView Moto Varifocal Bullet Camera,

High quality imaging with 8 MP resolution.

Excellent low-light performance via DarkFighter technology.

Clear imaging against strong back light due to 120 dB true WDR technology.

Efficient H.265+ compression technology to save bandwidth and storage.

5 streams to meet a wide variety of applications.

Water and dust resistant (IP67) and vandal proof (IK10).

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & Night

    IR cut filter

    Blue glass module to reduce ghost phenomenon

  • Lens
  • Aperture

    2.8 to 12 mm: F1.2 to F2.5

    8 to 32 mm: F1.7 to F1.73

  • Iris TypeP-iris
  • Focal Length & FOV

    2.8 to 12 mm, horizontal FOV: 112.3° to 41.2°, vertical FOV: 58° to 23.1°, diagonal FOV: 137.3° to 47.3°

    8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°

  • FocusAuto, semi-auto, manual
  • DORI
  • DORI

    Wide:

    2.8 to 12 mm: D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m

    8 to 32 mm: D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m

    Tele:

    2.8 to 12 mm: D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m

    8 to 32 mm: D: 580 m, O: 230.2 m, R: 116 m, I: 58 m

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light Range

    2.8 to 12 mm: 50 m

    8 to 32 mm: 100 m

  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • AI Open Platform
  • Model Specification

    Up to 4 models,

    Model type: detection model, classification model, mixed model (detection model and classification model)

  • Video
  • Main Stream

    50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)

    60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 480, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Third Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  • Fourth Stream

    50 Hz: 25 fps (704 × 480, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Fifth Stream

    50 Hz: 25 fps (704 × 480, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    Fourth stream: H.265/H.264/MJPEG,

    Fifth stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile
  • H.265 TypeBaseline Profile,Main Profile,High Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)4 fixed region(s) for each stream
  • Target CroppingYes
  • Bit Rate ControlCBR,VBR
  • Audio
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio TypeMono sound
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network Storage

    NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11

    Plug-in free live view: Chrome 45.0+, Firefox 52.0+

    Not recommended: Safari 11+, Edge

  • Image
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, HLC, Defog, 3D DNR
  • SNR≥ 52 dB
  • Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
  • Image StabilizationEIS
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Interface
  • Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
  • Alarm2 input, 2 outputs (max. 24 VDC, 1 A)
  • RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Power OutputWith -Y: 12 VDC, max. 100 mA
  • Event
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
  • Deep Learning Function
  • Multi-Target-Type Detection

    Supports simultaneous detection and capture of human body, face and vehicle

    Gets 7 face features, 13 human body features and 2 vehicle features

  • Face Capture

    Detects up to 60 faces simultaneously

    Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°

    Uploads face with background and closed-up face pictures

  • Face Comparison

    Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.

    Supports face library encryption

  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

  • People Counting

    Supports crossline people counting,

    Supports counting, displaying and exporting the people flow data of entering and exiting. (The data is stored in the flash.),

    The real-time people flow data is displayed on the screen. ,

    Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°.,

    Uploads face with background and closed-up face picture.,

    Supports real-time uploading and uploading by statistic cycle

  • Queue Management

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 2 detection modes: regional people queuing-up, waiting time detection

    Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

    Supports raw data export for further analysis.

    Supports real-time data uploading and scheduled data uploading

    Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

    Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

  • Heat Map

    A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

    Two report types are available, space heat map and time heat map line chart.

  • Hard Hat Detection

    Detects up to 30 human targets simultaneously

    Supports up to 4 shield regions

  • MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
  • Regional People Counting

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

    Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

    Supports searching real-time number of people

    People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

    Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

    Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

  • On/Off Duty Detection

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 2 detection modes: absence detection, on/off duty detection

    Supports parameter settings: person on duty, absence duration

  • General
  • Power

    12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block

    PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295 A, max. 16.8 W

  • Dimension

    Without -Y: Ø144 × 347 mm (Ø5.7" × 13.7\")

    With -Y: Ø140 × 351 mm (Ø5.5 × 13.8\") "

  • Package Dimension405 × 190 × 180 mm (15.9" × 7.5" × 7.1")
  • WeightApprox. 1950 g (4.2 lb.)
  • With Package WeightApprox. 3070 g (6.7 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams
  • HeaterYes
  • Approval
  • EMC

    FCC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC (ICES-003: Issue 7);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety

    UL (UL 62368-1);

    CB (IEC 62368-1:2014+A11);

    CE-LVD (EN 62368-1:2014/A11:2017);

    BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

    LOA (IEC/EN 60950-1)

  • Environment

    CE-RoHS (2011/65/EU);

    WEEE (2012/19/EU);

    Reach (Regulation (EC) No 1907/2006)

  • ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
  • Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
  • Automotive And RailwayEN50121-4
  • OtherPVC FREE
