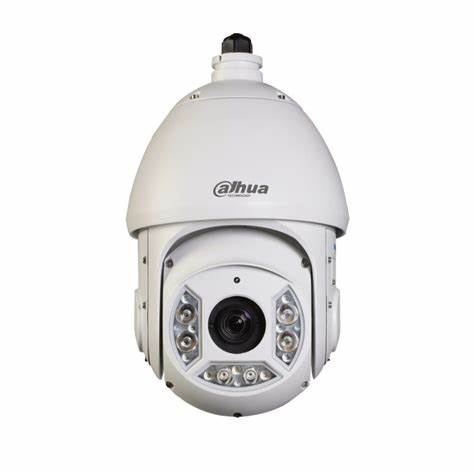

PTZ/Dahua/4MP/IP/30X

Technical Specification

Camera

• Image Sensor : 1/3” CMOS
• Effective Pixels : 2592(H) x 1520(V), 4 Megapixels, RAM/ROM 1024M/128M
• Scanning System : Progressive
• Electronic Shutter Speed : 1/1s~1/30,000s
• Minimum Illumination : Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6;0Lux@F1.6 (IR on)
• S/N Ratio : More than 55dB
• IR Distance Distance : up to 100m (328ft)
• IR On/Off Control : Auto/Manual
• IR LEDs : 6

Lens

• Focal Length : 4.5mm~135mm
• Max. Aperture : F1.6 ~ F4.4
• Angle of View : H: 60° ~ 2.2°
• Optical Zoom :30x
• Focus Control : Auto/Manual
• Close Focus Distance : 100mm~ 1000mm

PTZ

• Pan/Tilt Range : Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
• Manual Control Speed : Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
• Preset Speed : Pan: 240° /s; Tilt: 200° /s
• Presets : 300
• PTZ Mode : 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
• Speed Setup : Human-oriented focal Length/ speed adaptation
• Power up Action : Auto restore to previous PTZ and lens status after power failure
• Idle Motion : Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Protocol : DH-SD, Pelco-P/D (Auto recognition)

Intelligence

• Event Trigger : Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
• Auto Tracking : Support
• IVS : Tripwire, Intrusion, Abandoned/Missing
• Advanced Intelligent Functions : Face Detection, Heat Map

Video

• Compression : H.265+/H.265/H.264+/H.264
• Streaming Capability : 3 Streams
• Resolution : 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
• Frame Rate : Main stream: 4M/3M(1~25/30fps), 1080P/1.3M/720P(1~50/60fps), Sub stream1: D1/CIF(1 ~ 25/30fps), Sub stream2: 4M/1080P/1.3M/720P/D1/CIF, (1~25/30fps)
• Bit Rate Control : CBR/VBR
• Bit Rate : H.265/H.264: 448K ~ 8192Kbps
• Day/Night : Auto(ICR) / Color / B/W
• Backlight Compensation : BLC / HLC / WDR (120dB)
• White Balance : Auto, ATW, Indoor, Outdoor, Manual
• Gain Control : Auto / Manual
• Noise Reduction : Ultra DNR (2D/3D)
• Motion Detection : Support
• Region of Interest : Support
• Electronic Image Stabilization(EIS) : Support
• Defog : Support
• Digital Zoom : 16x
• Flip : 180°
• Privacy Masking : Up to 24 areas

Audio

• Compression : G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2

Network

• Ethernet : RJ-45 (10Base-T/100Base-TX)
• Protocol : IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
• Interoperability : ONVIF Profile S&G, API
• Streaming Method : Unicast / Multicast
• Max. User Access : 20 users
• Edge Storage : NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
• Web Viewer : IE, Chrome, Firefox, Safari
• Management Software : Smart PSS, DSS, DMSS
• Smart Phone : IOS, Android

Certifications

• Certifications : CE: EN55032/EN55024/EN50130-4, FCC: Part15 subpartB,ANSI C63.4- 2014, UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

• Video Interface : 1 port(BNC, 1.0V[p-p], 75Ω)
• RS485 : 1
• Audio : I/O 1/1
• Alarm : I/O 2/1

Electrical

• Power Supply : AC24V/3A(±10%)
• Power Consumption : 10.5W, 26W (IR on)

Environmental

• Operating Conditions : -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
• Ingress Protection : IP66
• Vandal Resistance : N/A

Construction

• Casing : Metal
• Dimensions : Φ205(mm) x 336(mm)
• Net Weight : 5kg(11.02lb)
• Gross Weight : 8.3kg(18.30lb)
