Dahua/Indoor/8MP/IP/BIM

Price:

675.00 QR


Panatron/PBX/24 Port
Panatron/PBX/24 Port
2,850.00 QR
2,850.00 QR

Dahua/Indoor/8MP/IP/BIM

https://tamyeez.odoo.com/web/image/product.template/8408/image_1920?unique=6efbe79
(تقييم 0)

675.00 QR 675.0 QAR 675.00 QR

675.00 QR

Not Available For Sale


هذه التركيبة غير موجودة.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

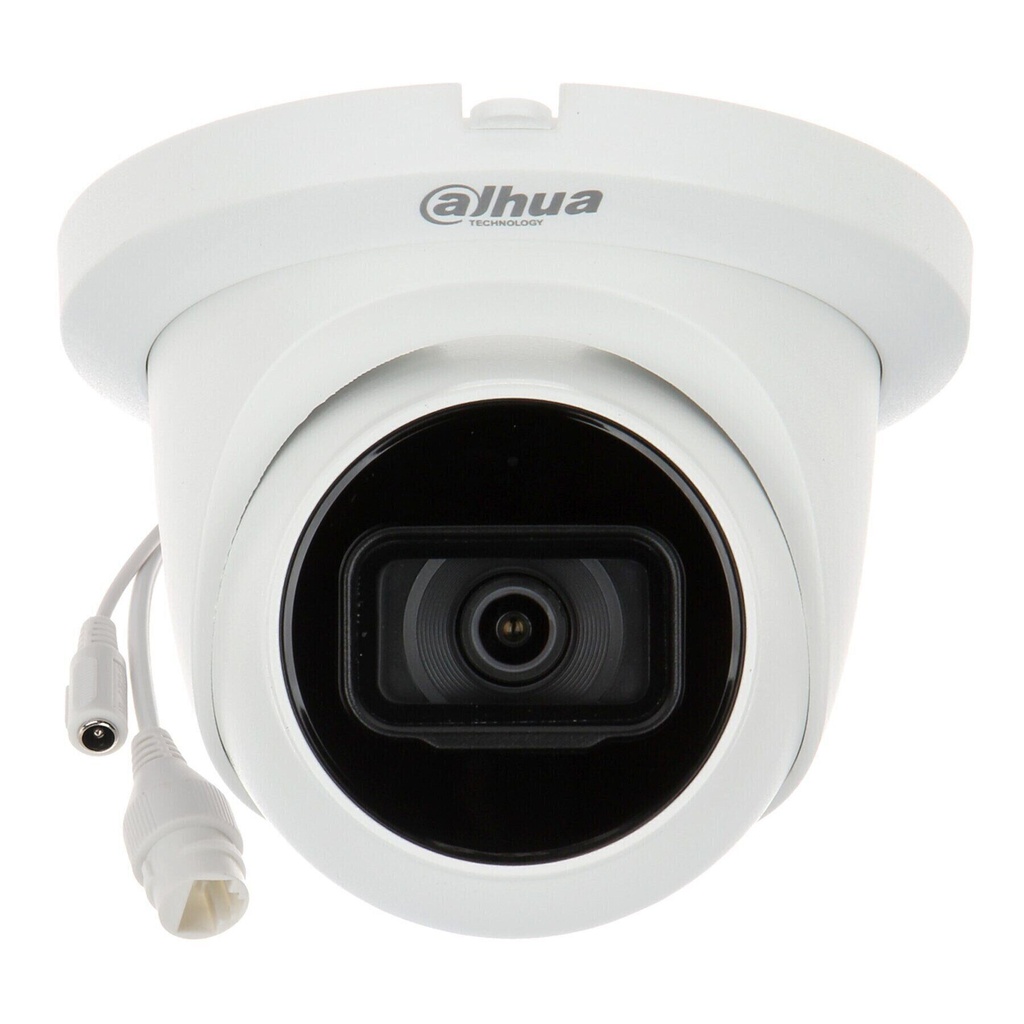

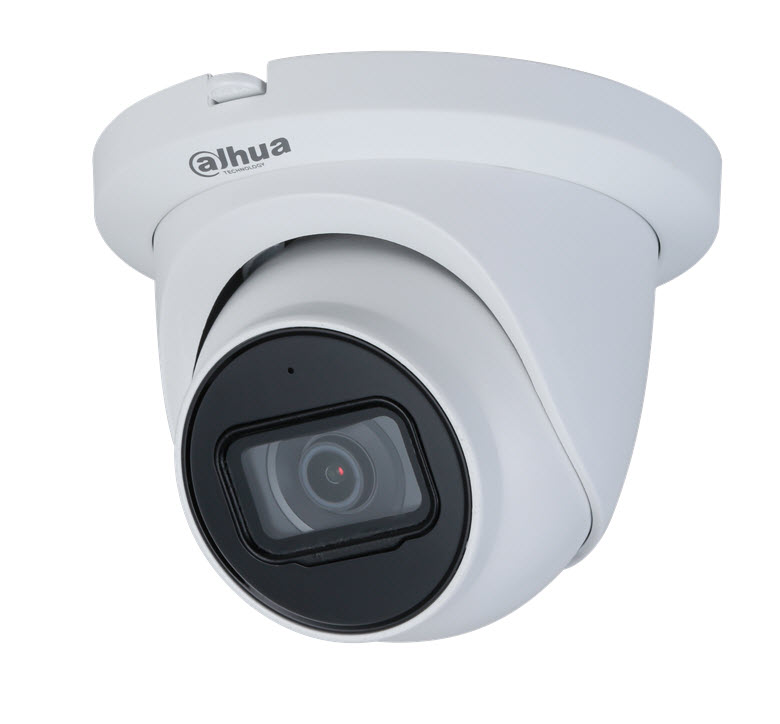

Camera - Indoor/8MP/IP/BIM - DahuaDH-IPC-HDW2831TM-AS-S2.
8MP Lite IR Fixed-focal Eyeball Network Camera,

· 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition.

· Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520.

 (2688 × 1520) @25/30 fps.

· H.265 codec, high compression rate, ultra-low bit rate.

· Built-in IR LED, max IR distance: 30 m.

· ROI, SMART H.264/H.265, flexible coding, applicable to various.

 bandwidth and storage environments.

· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,

 applicable to various monitoring scenes.

· Intelligent detection: Intrusion, tripwire.

· Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal.

 access, voltage detection.

· Supports max. 256 GB Micro SD card, built-in MIC.

· 12V DC/PoE power support.

· IP67 protection.

Characteristics
Matrix1/2.7
Max. permission3840x2160
ROM/RAM256M/128M
Min. sensitivity0.009 Lux/F2.0 (color), 0 Lux with IR illumination
Shutter speedAuto/Manual, 1/3 - 1/100000s
Day/night modeAuto IR Cut Filter (ICR) / Color / B/W
Axis adjustmentRotation: 0°~360°; Tilt: 0°~78°; Rotation: 0° ~ 360°
Backlight typeSmart IR
Backlight controlAuto/Manual
Number of diodes2
Backlight range30 m
Lens TypeFixed lens / fixed aperture
Focal length2.8 mm
Lens mountM12
ApertureF2.0
Viewing anglesH: 105°; V: 56°; D: 125°
Focus distance1 m
Object Discovery74.7 m
Object Monitoring9.9 m
Object recognition14.9 m
Object identification7.5 m
Video CompressionH.265, H.264, H.264B, MJPEG
Number of threads2 streams
Permission support8MP (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 4MP(2560x1440), 3MP (2048x1536), 3MP (2304x1296), 2MP (1920x1080), 1.3MP(1280x960), 1MP(1280x720), D1 (704x576), VGA (640x480), CIF(352x288)
Frame rate (main thread)4K - 15fps, 5MP - 25fps
Frame rate (additional stream)D1 - 25fps
Video BitrateH.264: 32-8192 Kbps; H.265: 12-8192 Kbps
Flow controlCBR/VBR
Gain Control (AGC)Auto/Manual
Noise Reduction (DNR)3D DNR
White BalanceAuto / Natural / Street Lamp / Outdoor / Manual
BLCSupported
HLCSupported
WDR120 dB
ROISupported (4 zones)
Flip0°/90°/180°/270°
Image settingsBrightness, contrast, saturation
Main processing functionsMirror image, private masks (4 zones)
Audio CompressionG.711a; G.711Mu; G726; AAC
EthernetRJ -45 (10/100Base -T)
Network ProtocolsIPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, Bonjour
CompatibilityONVIF(Profile S/Profile G/Profile T); .CGI; P2P; Milestone; Genetec
Number of concurrent connectionsup to 20 channels
Storage MethodDahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser supportIE, Chrome, Firefox
SoftwareSmart PSS, DSS, DMSS
Mobile PlatformsiOS, Android
Audio InterfacesBuilt-in microphone
Network Interfaces1 RJ-45 (10/100Base-T)
Local Storagemicro SD up to 256GB
Line crossingEat
Invasion of the areaEat
Alarm triggersMotion Detection, IVS Rules, Scene Change, Network Disconnection, IP Address Conflict, Storage Error
NutritionDC 12 V
PoE802.3af
Power Consumption7.2 W
Operating temperature-40° C - +55° C
Humidity≤95%
Degree of protectionIP67
DimensionФ109х100 mm
Weight480 g
MaterialMetal
