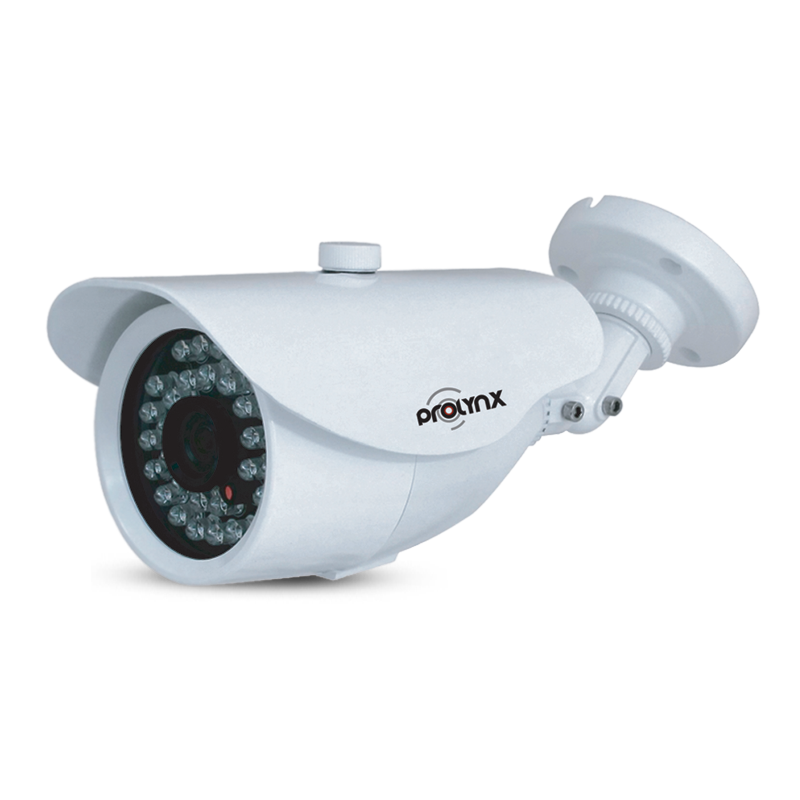

Outdoor camera -Prolynx PL-AHD01B.
1/3″ Sony Progressive Scan CMOS.
3.6mm, 6mm optional.
Full HD 1080P.
Video Transmission 300meters.
IR Range 20m.
3D DNR,dWDR,ICR,BLC,HLC,ATW.
IP66.
Camera :
Image Sensor 1/3” Sony CMOS
Signal System PAL/NTSC
Min. illumination 0.001Lux @ (F1.2,AGC ON),0 Lux with IR, 0.0005Lux @ (F1.4,AGC ON),0 Lux with IR
SN ≥50dB
Day & Night ICR
Shutter Speed PAL:1/50-1/50000 NTSC:1/60-1/60000
Wide Dynamic Range dWDR,OFF/ON(Level 0-8)/Auto
Digital Noise Reduction 2D/3D
Lens 3.6mm,6mm optional
FOV 75°
IR LED 30pcs
IR Wavelength 850nm
IR Range 20m
IMAGE :
Effective Resolution 1920×1080
Frame PAL:25fps ,NTSC:30fps
White Balance ATW/AWC-SET/Indoor/Outdoor/MANUAL
Gain Level 0-15
Light Compensation BLC/HLC/OFF
VIDEO OUTPUT :
Max Distance 75-5 300m
Output Interface 1ch HD Analogue
Power Supply DC 12V ± 10%
Power Consumption 4W (Max)
OperatingTemperature -10 ̊C ~ +55 ̊C
Operating Humidity 0% – 85% RH
Ingress Protection IP66
Approvals CE / FCC
Material Aluminium Alloy
Product Dimensions Φ170×69×65mm
Zone Scanning/Display Scanning within programmed zone, display zone title
Camera Title Programmable title display
Compass Support , the north can be set
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
RS-485 Including failure information, e.g., wrong address, baud rate errors,
INPUT/OUTPUT :
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 Interface Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
Manchester code Including failure information, e.g., wrong address,
communication diagnosis. et., displayed on the video screen in text
GENERAL :
Menu Language English, Chinese
Power 24 VAC Outdoor: Max.18 W(heater: 6W) Indoor: Max.12W
Working Temperature / Humidity -30 °C-65°C(-22°F-149°F) (outdoor dome) / -10°C-50°C
(14°F-122°F) (indoor dome ) 90% or lessProtection Level IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimensions Φ179.4×239.5mm (Φ7.06”×9.43”)(Outdoor) Φ165×179.5mm(Φ6.50”×7.07”) (Indoor) Φ165×168mm(Φ6.50”×6.61”) (In-ceiling)
Weight (approx.) 2Kg (4.41Ibs) (Outdoor) 2Kg (4.41Ibs) (Indoor/In-ceiling)
Mount Option Long-arm wall mount: DS-1602ZJ
(only suitable for Long-arm pendant mount: DS-1662ZJ
outdoor dome) Short-arm pendant mount: DS-1661ZJ
Camera :
Image Sensor 1/3” Sony CMOS
Signal System PAL/NTSC
Min. illumination 0.001Lux @ (F1.2,AGC ON),0 Lux with IR, 0.0005Lux @ (F1.4,AGC ON),0 Lux with IR
SN ≥50dB
Day & Night ICR
Shutter Speed PAL:1/50-1/50000 NTSC:1/60-1/60000
Wide Dynamic Range dWDR,OFF/ON(Level 0-8)/Auto
Digital Noise Reduction 2D/3D
Lens 3.6mm,6mm optional
FOV 75°
IR LED 30pcs
IR Wavelength 850nm
IR Range 20m
IMAGE :
Effective Resolution 1920×1080
Frame PAL:25fps ,NTSC:30fps
White Balance ATW/AWC-SET/Indoor/Outdoor/MANUAL
Gain Level 0-15
Light Compensation BLC/HLC/OFF
VIDEO OUTPUT :
Max Distance 75-5 300m
Output Interface 1ch HD Analogue
Power Supply DC 12V ± 10%
Power Consumption 4W (Max)
OperatingTemperature -10 ̊C ~ +55 ̊C
Operating Humidity 0% – 85% RH
Ingress Protection IP66
Approvals CE / FCC
Material Aluminium Alloy
Product Dimensions Φ170×69×65mm
Zone Scanning/Display Scanning within programmed zone, display zone title
Camera Title Programmable title display
Compass Support , the north can be set
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
RS-485 Including failure information, e.g., wrong address, baud rate errors,
INPUT/OUTPUT :
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 Interface Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
Manchester code Including failure information, e.g., wrong address,
communication diagnosis. et., displayed on the video screen in text
GENERAL :
Menu Language English, Chinese
Power 24 VAC Outdoor: Max.18 W(heater: 6W) Indoor: Max.12W
Working Temperature / Humidity -30 °C-65°C(-22°F-149°F) (outdoor dome) / -10°C-50°C
(14°F-122°F) (indoor dome ) 90% or lessProtection Level IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimensions Φ179.4×239.5mm (Φ7.06”×9.43”)(Outdoor) Φ165×179.5mm(Φ6.50”×7.07”) (Indoor) Φ165×168mm(Φ6.50”×6.61”) (In-ceiling)
Weight (approx.) 2Kg (4.41Ibs) (Outdoor) 2Kg (4.41Ibs) (Indoor/In-ceiling)
Mount Option Long-arm wall mount: DS-1602ZJ
(only suitable for Long-arm pendant mount: DS-1662ZJ
outdoor dome) Short-arm pendant mount: DS-1661ZJ
