Hanwha/6MP/30X/IR/(Outdoor Non Dome PTZ)

Price:

14,775.00 QR


Hanwha/Outdoor/6MP/IP/VF/40M
Hanwha/Outdoor/6MP/IP/VF/40M
3,895.00 QR
3,895.00 QR
Hanwha/Wall and Pole Mount for PTZ
Hanwha/Wall and Pole Mount for PTZ
595.00 QR
595.00 QR

Hanwha/6MP/30X/IR/(Outdoor Non Dome PTZ)

https://tamyeez.odoo.com/web/image/product.template/10800/image_1920?unique=cfe65f1
(0 review)

14,775.00 QR 14775.0 QAR 14,775.00 QR

14,775.00 QR

Not Available For Sale


This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

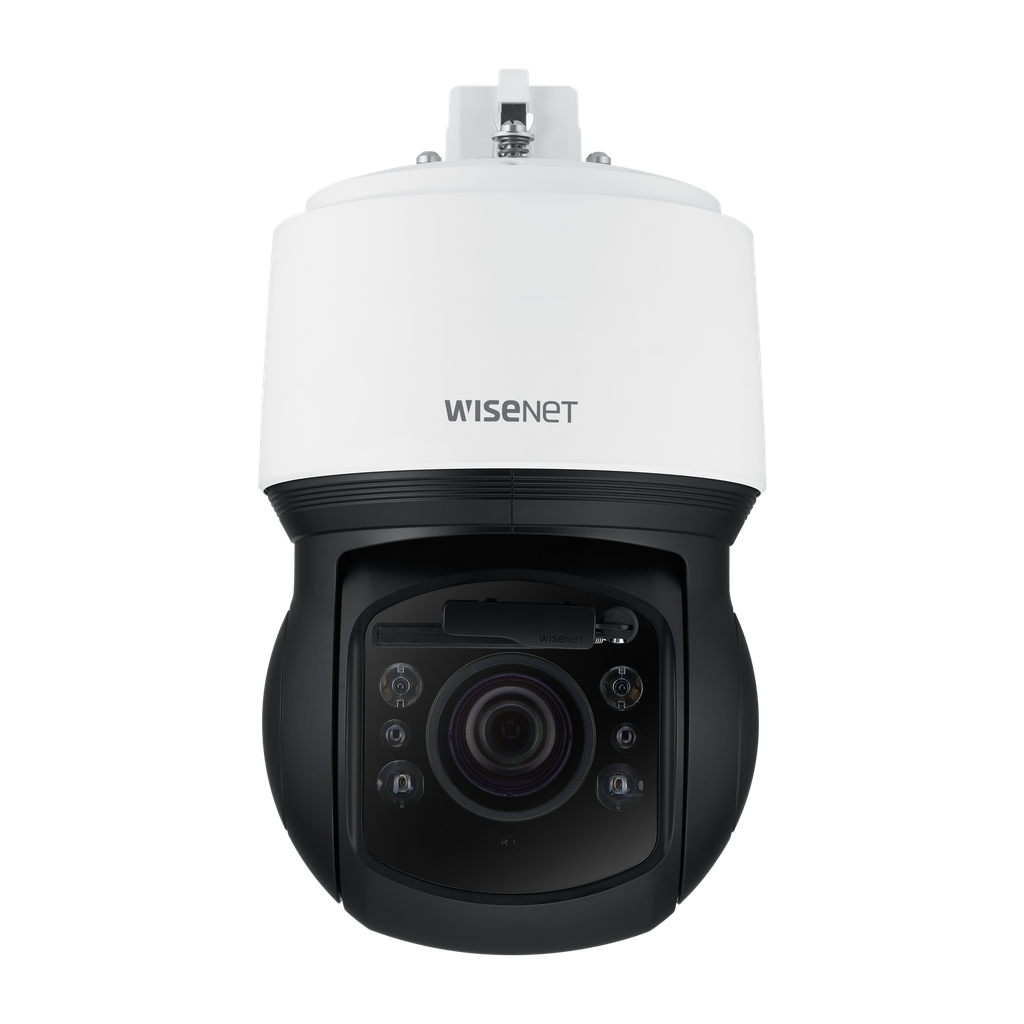

6MP 30x IR Wiper PTZ Camera - XNP-8300RW.

6MP resolution @ 30fps.

IR viewable length : 200m (656ft)

30x optical zoom lens (5mm ~150mm) (57.42° ~ 2.19°)

-20° tilt look-up capability to see above the horizon.

H.265, H.264, MJPEG triple codec support.

Multiple streaming, WiseStream II support.

Day & Night (ICR), extreme WDR.

DIS with Built-in Gyro sensor.

Azimuth display (Cardinal & intermediate directions)

AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics.

Dual Memory slots (Maximum 512GB x 2)

IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)

HPoE (IEEE802.3bt, Class6, Type3, Injector included)

UL CAP Cybersecurity certified.

Optional Network I/O box for alarm & audio I/O SPM-4210

Video
Imaging Device1/2.8" CMOS
Resolution3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. IlluminationColor: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On)
Video OutNone
Lens
Focal Length (Zoom Ratio)5~150mm(30x) zoom (digital 32x, total 960x zoom)
Max. Aperture RatioF1.6(Wide) - F4.56(Tele)
Angular Field of ViewH: 57.42˚(Wide)~2.19˚(Tele) / V: 33.54˚(Wide)~1.25˚(Tele)
Min. Object Distance3m(9.84ft)
Focus ControlOneshot AF, Focus save
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan Range360˚ Endless
Pan SpeedMax. 500˚/sec, Manual: 0.024˚/sec~250˚/sec
Tilt Range110˚(-20˚~90˚)
Tilt SpeedMax. 350˚/sec, Manual: 0.024˚/sec~250˚/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy±0.1˚, Pan/Tilt correction
Operational
Camera TitleDisplayed up to 85 characters
Direction IndicatorSupport
Day & NightAuto(ICR)/Color/BW/Schedule
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic RangeExtreme WDR(120dB)
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain ControlManual / Max
White BalanceATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium
LDCNone
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror
AnalyticsDirectional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection * Audio detection, Sound classification(with NW I/O Box)
Business IntelligenceNone
Serial InterfaceNone
Alarm I/ONone
Alarm TriggersAnalytics, Network disconnect * Alarm input(with NW I/O Box)
Alarm EventsFile upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover * Alarm output(with NW I/O Box)
Audio InNone
Audio OutNone
IR Viewable Length200m(656.17ft), Wise IR
IR Illuminator (Optional)None
Water RemovalSupport(with wiper)
Auto TrackingObject auto tracking(Person/Vehicle), Target lock tracking
Network
EthernetMetal shielded RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionNone
Smart CodecManual(5ea area), WiseStreamⅡ
Video Quality AdjustmentH.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) Cyber security assuarance program UL CAP(UL 2900-1)
Application Programming InterfaceONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web ViewerNone
Edge StorageMicro SD/SDHC/SDXC 2slot 1TB
Memory4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / HumidityNormal : -40°C~+55°C(-40°F ~ +131°F) / Maximum Temperature based on NEMA-TS 2(2.2.7) : +74°C(+165°F) * Start up should be done at above -30°C Less than 95% RH(Non-condensing)
Storage Temperature / Humidity-50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
CertificationIP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
Input VoltageHPoE(IEEE802.3bt, Class6, Type3, Injector included)
Power ConsumptionTypical 20W, Max 42W
Mechanical
Color / MaterialWhite, Black / Aluminum+Polycarbontate
RAL CodeWhite: RAL9003 / Black: RAL9005
Product dimensions / weightØ184.9x318.8mm(7.28x12.55") / 5.4Kg(11.90lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 121.5m(398.7ft) / Tele: 3482.3m(11424.9ft)
Observe (63PPM/ 19PPF)Wide: 48.6m(159.5ft)/ Tele: 1392.9m(4570.0ft)
Recognize (125PPM/ 38PPF)Wide: 24.3m(79.7ft)/ Tele: 696.5m(2285.0ft)
Identify (250PPM/ 76PPF)Wide: 12.2m(39.9ft) / Tele: 348.2m(1142.5ft)
Video
Imaging Device1/2.8" CMOS
Resolution3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. IlluminationColor: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On)
Video OutNone
Lens
Focal Length (Zoom Ratio)5~150mm(30x) zoom (digital 32x, total 960x zoom)
Max. Aperture RatioF1.6(Wide) - F4.56(Tele)
Angular Field of ViewH: 57.42˚(Wide)~2.19˚(Tele) / V: 33.54˚(Wide)~1.25˚(Tele)
Min. Object Distance3m(9.84ft)
Focus ControlOneshot AF, Focus save
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan Range360˚ Endless
Pan SpeedMax. 500˚/sec, Manual: 0.024˚/sec~250˚/sec
Tilt Range110˚(-20˚~90˚)
Tilt SpeedMax. 350˚/sec, Manual: 0.024˚/sec~250˚/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy±0.1˚, Pan/Tilt correction
Operational
Camera TitleDisplayed up to 85 characters
Direction IndicatorSupport
Day & NightAuto(ICR)/Color/BW/Schedule
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic RangeExtreme WDR(120dB)
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain ControlManual / Max
White BalanceATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium
LDCNone
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror
AnalyticsDirectional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection * Audio detection, Sound classification(with NW I/O Box)
Business IntelligenceNone
Serial InterfaceNone
Alarm I/ONone
Alarm TriggersAnalytics, Network disconnect * Alarm input(with NW I/O Box)
Alarm EventsFile upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover * Alarm output(with NW I/O Box)
Audio InNone
Audio OutNone
IR Viewable Length200m(656.17ft), Wise IR
IR Illuminator (Optional)None
Water RemovalSupport(with wiper)
Auto TrackingObject auto tracking(Person/Vehicle), Target lock tracking
Network
EthernetMetal shielded RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionNone
Smart CodecManual(5ea area), WiseStreamⅡ
Video Quality AdjustmentH.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) Cyber security assuarance program UL CAP(UL 2900-1)
Application Programming InterfaceONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web ViewerNone
Edge StorageMicro SD/SDHC/SDXC 2slot 1TB
Memory4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / HumidityNormal : -40°C~+55°C(-40°F ~ +131°F) / Maximum Temperature based on NEMA-TS 2(2.2.7) : +74°C(+165°F) * Start up should be done at above -30°C Less than 95% RH(Non-condensing)
Storage Temperature / Humidity-50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
CertificationIP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
Input VoltageHPoE(IEEE802.3bt, Class6, Type3, Injector included)
Power ConsumptionTypical 20W, Max 42W
Mechanical
Color / MaterialWhite, Black / Aluminum+Polycarbontate
RAL CodeWhite: RAL9003 / Black: RAL9005
Product dimensions / weightØ184.9x318.8mm(7.28x12.55") / 5.4Kg(11.90lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 121.5m(398.7ft) / Tele: 3482.3m(11424.9ft)
Observe (63PPM/ 19PPF)Wide: 48.6m(159.5ft)/ Tele: 1392.9m(4570.0ft)
Recognize (125PPM/ 38PPF)Wide: 24.3m(79.7ft)/ Tele: 696.5m(2285.0ft)
Identify (250PPM/ 76PPF)Wide: 12.2m(39.9ft) / Tele: 348.2m(1142.5ft)
