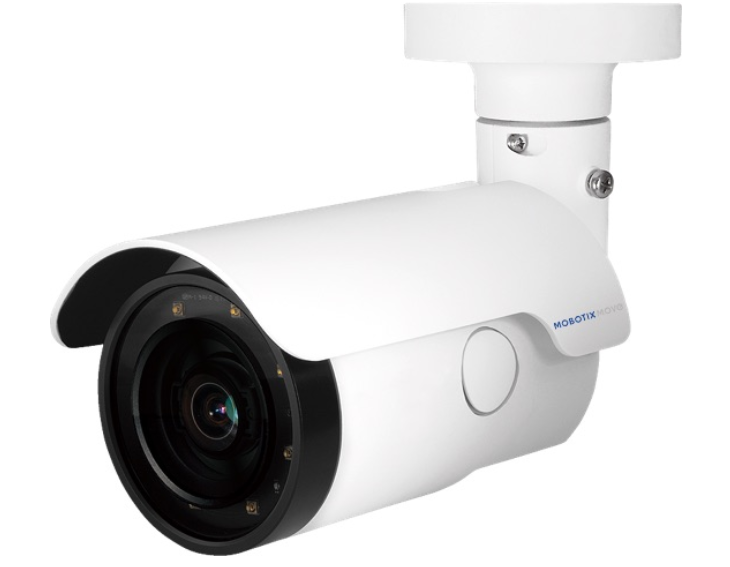

MOBOTIX MOVE Bullet Network Camera - MOBOTIX VB1A-4-IR-D.
Image sensor: 4MP (2688x1512), 1/3" Progressive CMOS.
Weatherproof ONVIF S / G bullet camera with built-in IR LEDs (up to 30m) for use with Day and night.
Automatic changeover from color to B / W image (mechanical IR cut filter)
Remote Zoom.
Motor-controlled zoom lens (F1.6: 9 to 22 mm, viewing angle H: 35 °-15 °, V: 20 °-9 °) with Auto Iris with automatic adaptation to changing light situations.
IP66, IK10.
Ambient temperature -30 to 60°C, humidity 10 to 90%
Video codecs: H.264, MJPEG (up to 3 streams simultaneously )
WDR (120 dB)
Max. Frame rate: 4MP @ 30B / s (H.264); MJPEG: 1080p @ 30 B / s
Power supply: PoE IEEE 802.3af or DC 12V (2.12 A) or AC 24V; max 13.68 W
Overall
Product Designation
MOBOTIX MOVE VandalBullet
Mx Ordercode
Mx-VB1A-4-IR-D
Intro Product
MOBOTIX MOVE Bullet Network Camera VB1A-4-IR-D • Image sensor: 4MP (2688x1512), 1/3" Progressive CMOS • Weatherproof ONVIF S / G bullet camera with built-in IR LEDs (up to 40m) for use with Day and night • Automatic changeover from color to B / W image (mechanical IR cut filter) • Remote Zoom • Motor-controlled zoom lens (F1.6: 9 to 22 mm, viewing angle H: 35 °-15 °, V: 20 °-9 °) with Auto Iris with automatic adaptation to changing light situations • IP66, IK10 • Ambient temperature -30 to 55°C, humidity 10 to 90% • Video codecs: H.264, H.265, MJPEG (up to 3 streams simultaneously ) • WDR (120 dB) • Max. Frame rate: 4MP @ 30B / s (H.264); MJPEG: 1080p @ 30 B / s • Power supply: PoE IEEE 802.3af or DC 12V (2.12 A) or AC 24V; max 13.68 W • Warranty: 5 years
Camera Type
Vandal Bullet Camera
Manual Lens Alignment
No
Microphone
No
Speaker
No
Application Area
Outdoor
IndoorMxBUS
No
Servo-controlled Lens Alignment
No
Housing Shape
Bullet
Housing Color
white
Technical Data
Ambient Temperature (°C)
-30°C to 60°C (-22°F to 140°F) without Heater
-55°C to 60°C (-67°F to 140°F) with Heater
10 % to 90 %, no CondensationIP Class
IP66
IK Class
IK10
Certificates
- EMC: CE / FCC
- Safety: LVD
- Environment: IP66
MTBF (h)
95,000
PIR
No
Audio
Line in/out
DVR
Support for Recording to NAS
Protocols
ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP,
UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP,
DDNSEthernet
10/100 Mbps Ethernet
Overvoltage Protection
Optional via Mx-Overvoltage-Protection-Box
Mounting Options
Floor
Ceiling
Wall
PoleLensType
Zoom
Image Angle horizontal
35° (Wide), 15° (Tele)
Image Angle vertical
20° (Wide), 9° (Tele)
Focal Length
9 to 22 mm
Aperture
F1.6
Automatical IR-cut Filter
Yes
Max. Frame Rate
H.264: 4MP@30fps + d1@30fps
MJPEG: 1080p@30fpsMax. Image Size
2688 x 1536 (4MP)
Lens(es)
Zoom Lens: Focus, Zoom, P-Iris
Image Format
16:9
Light Sensitivity
- Color: 0.1 lux
- B/W: 0.01 lux
Video Codecs
H.264
H.265
MJPEGONVIF compatibility
Profil S/G/Q Support
Image Sensor
4MP, 1/3“ Progressive CMOS
Wide Dynamic Range (WDR)
Yes, 120 dB
Power Consumption (W)
max. 13.68 W
Power Supply
PoE IEEE802.3af, Class 0
DC 12 V, 1.14 A
AC 24 VIntegrated IR
Yes
Interfaces
- RJ45
- Alarm in x2, Alarm out x1, Terminal Block
- DC12V Terminal Block
- AC24V Terminal Block
- Audio in 3.5 mm Jack
- Audio out 3.5 mm Jack
- CVBS Connector
Height Product
144
Width Product (mm)
105
Depth Product (mm)
233.8
Diameter Product (mm)
105
Weight Product (g)
1210
Security
Tamper Detection
Yes
