UNV/NVR 16 Channel/POE/Supports 8MP/(4K)

Price:

875.00 QR


Panatron/PBX/24 Port
Panatron/PBX/24 Port
2,850.00 QR
2,850.00 QR

UNV/NVR 16 Channel/POE/Supports 8MP/(4K)

https://tamyeez.odoo.com/web/image/product.template/9509/image_1920?unique=1f6e42c
(0 review)

875.00 QR 875.0 QAR 875.00 QR

875.00 QR

Not Available For Sale


This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

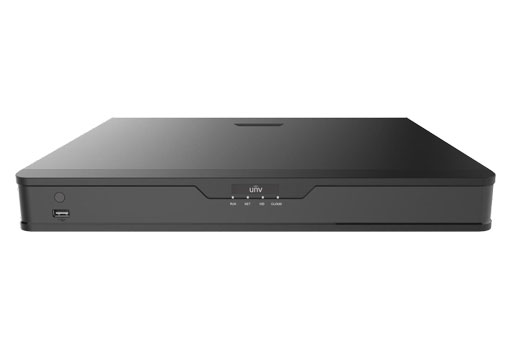

UNV/NVR 16 Channel/POE/Supports 8MP/(4K) - NVR302-16S2-P16.

Support Ultra265/H.265/H.264 video formats

8/16-channel input

Plug & Play with 8/16 independent PoE network interfaces

Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support HDMI and VGA simultaneous output

Up to 8 Megapixels resolution recording

2 SATA HDDs, up to 10TB for each HDD

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade
ModelNVR302-08S2-P8NVR302-16S2-P16
Video/Audio Input
IP Video Input8-ch16-ch
Two-way Audio Input1-ch, RCA
Network
Incoming Bandwidth80Mbps160Mbps
Outgoing Bandwidth64Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
BrowserIE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA OutputHDMI:
4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
VGA:
1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Audio CompressionG.711A, G.711U
Synchronous Playback8-ch16-ch
Liveview display1/4/6/8/91/4/6/8/9/16
Corridor Mode Screen3/4/5/7/93/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot4-ch snapshot, up to D1 resolution
Decoding
Decoding formatUltra 265/H.265/H.264
Live view/Playback8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @302 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
Hard Disk
SATA2 SATA interfaces
CapacityUp to 10TB for each disk
(The maximum HDD capacity varies with environment temperature)
Smart
VCA Detection by CameraIntrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
VCA SearchBehavior Search
People countingPeople Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), UMD by CameraTotal 8-ch
General Alarm
General AlarmMotion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB InterfaceFront panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In4-ch
Alarm Out1-ch
RS232NA
RS485NA
PoE
Interface8 RJ-45 10M/100M self-adaptive Ethernet Interface16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max PowerMax 30W for single port
Max 130W in total
Max 30W for single port
Max 240W in total
Supported StandardIEEE 802.3af/at
General
Power Supply100 ~ 240 V AC
Power Consumption: ≤10W(without HDD)
Working Environment-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)380mm ×315mm × 53mm (14.9" × 12.4" ×2.1")
Weight (without HDD)≤2.6kg (5.73lb)
Certification
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCCPart15 Subpart B, ANSI C63.4
ModelNVR302-08S2-P8NVR302-16S2-P16
Video/Audio Input
IP Video Input8-ch16-ch
Two-way Audio Input1-ch, RCA
Network
Incoming Bandwidth80Mbps160Mbps
Outgoing Bandwidth64Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
BrowserIE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA OutputHDMI:
4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
VGA:
1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Audio CompressionG.711A, G.711U
Synchronous Playback8-ch16-ch
Liveview display1/4/6/8/91/4/6/8/9/16
Corridor Mode Screen3/4/5/7/93/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot4-ch snapshot, up to D1 resolution
Decoding
Decoding formatUltra 265/H.265/H.264
Live view/Playback8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @302 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
Hard Disk
SATA2 SATA interfaces
CapacityUp to 10TB for each disk
(The maximum HDD capacity varies with environment temperature)
Smart
VCA Detection by CameraIntrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
VCA SearchBehavior Search
People countingPeople Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), UMD by CameraTotal 8-ch
General Alarm
General AlarmMotion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB InterfaceFront panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In4-ch
Alarm Out1-ch
RS232NA
RS485NA
PoE
Interface8 RJ-45 10M/100M self-adaptive Ethernet Interface16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max PowerMax 30W for single port
Max 130W in total
Max 30W for single port
Max 240W in total
Supported StandardIEEE 802.3af/at
General
Power Supply100 ~ 240 V AC
Power Consumption: ≤10W(without HDD)
Working Environment-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)380mm ×315mm × 53mm (14.9" × 12.4" ×2.1")
Weight (without HDD)≤2.6kg (5.73lb)
Certification
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCCPart15 Subpart B, ANSI C63.4
