UNV/NVR 8 Channel/POE

Price:

1,550.00 QR


Panatron/PBX/24 Port
Panatron/PBX/24 Port
2,850.00 QR
2,850.00 QR

UNV/NVR 8 Channel/POE

https://tamyeez.odoo.com/web/image/product.template/9483/image_1920?unique=1be2819
(0 review)

1,550.00 QR 1550.0 QAR 1,550.00 QR

1,550.00 QR

Not Available For Sale


This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

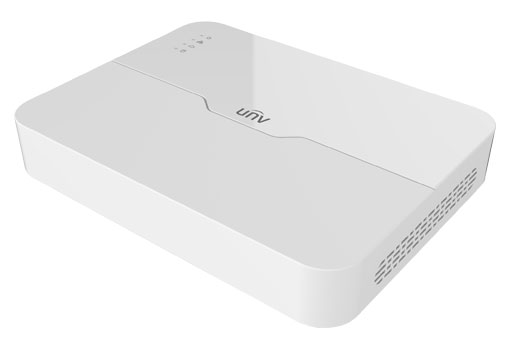

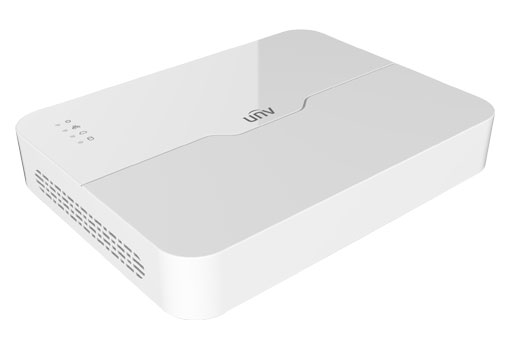

UNV/NVR 8 Channel/POE - NVR301-08LS3-P8.
8/16-ch 1-SATA Ultra 265/H.265/H.264 NVR,

Support Ultra 265/H.265/H.264 video formats

8/16-channel input

Plug & Play with 8 independent PoE network interfaces

Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

HDMI and VGA simultaneous output

Up to 4K resolution recording

1 SATA HDD up to 6TB

Support cloud upgrade
ModelNVR301-08LS3-P8NVR301-16LS3-P8
Video/Audio Input
IP Video Input8-ch16-ch
Network
Incoming Bandwidth64Mbps
Outgoing Bandwidth48Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP
Video/Audio Output
HDMI/VGA OutputHDMI:
4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Audio CompressionG.711A, G.711U
Synchronous Playback8-ch16-ch
Liveview display1/4/6/8/91/4/6/8/9/16
Corridor Mode Screen3/4/5/7/93/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot1-ch snapshot, up to D1 resolution
Decoding
Decoding formatUltra 265/H.265/H.264
Liveview/Playback4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@301 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25
Hard Disk
SATA1 SATA interface
Capacityup to 6TB for each disk
Smart
VCA Detection by CameraIntrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
VCA SearchBehavior Search
Smart Intrusion Prevention (SIP) by Camera4-ch(Alarm only, no image)
UMD by Camera4-ch
General Alarm
General AlarmMotion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert AlarmIP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel: 2 x USB2.0
RS232NA
RS485NA
Alarm InNA
Alarm OutNA
PoE
Interface8 RJ45 10M/100M self-adaptive Ethernet Interface
Max PowerMax 30W for single port
Max 75W in total
Supported StandardIEEE 802.3at, IEEE 802.3af
General
Power Supply52V DC
Power Consumption: ≤9 W (without HDD)
Working Environment-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)270mm × 205mm × 46mm (10.6"×8.1"×1.8")
Weight (without HDD)≤0.8 kg (1.76 lb)
Certification
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCCPart15 Subpart B, ANSI C63.4
