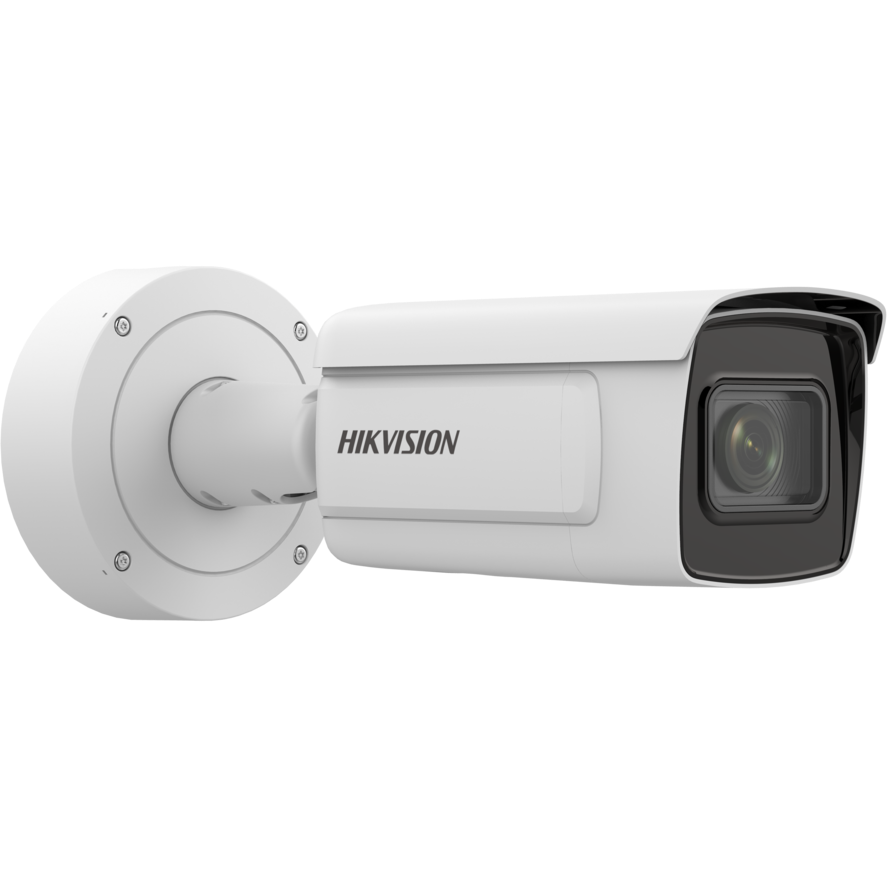

Hikvision/4K/DeepinView Moto Varifocal Bullet Camera/80M - iDS-2CD7A86G0-IZHS(Y)(R)
4k DeepinView Moto Varifocal Bullet Camera,
High quality imaging with 8 MP resolution.
Excellent low-light performance via DarkFighter technology.
Clear imaging against strong back light due to 120 dB true WDR technology.
Efficient H.265+ compression technology to save bandwidth and storage.
5 streams to meet a wide variety of applications.
Water and dust resistant (IP67) and vandal proof (IK10)
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & Night
IR cut filter
Blue glass module to reduce ghost phenomenon
- Lens
- Aperture
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
- Iris TypeP-iris
- Focal Length & FOV
2.8 to 12 mm, horizontal FOV: 112.3° to 41.2°, vertical FOV: 58° to 23.1°, diagonal FOV: 137.3° to 47.3°
8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°
- FocusAuto, semi-auto, manual
- DORI
- DORI
Wide:
2.8 to 12 mm: D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m
8 to 32 mm: D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m
Tele:
2.8 to 12 mm: D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m
8 to 32 mm: D: 580 m, O: 230.2 m, R: 116 m, I: 58 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- AI Open Platform
- Model Specification
Up to 4 models,
Model type: detection model, classification model, mixed model (detection model and classification model)
- Video
- Main Stream
50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)
60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)
- Sub-Stream
50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream
50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Fifth Stream
50 Hz: 25 fps (704 × 480, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile
- H.265 TypeBaseline Profile,Main Profile,High Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)4 fixed region(s) for each stream
- Target CroppingYes
- Bit Rate ControlCBR,VBR
- Audio
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio TypeMono sound
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Not recommended: Safari 11+, Edge
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, HLC, Defog, 3D DNR
- SNR≥ 52 dB
- Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
- Image StabilizationEIS
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Interface
- Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
- Alarm2 input, 2 outputs (max. 24 VDC, 1 A)
- RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power OutputWith -Y: 12 VDC, max. 100 mA
- Event
- Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
- Deep Learning Function
- Multi-Target-Type Detection
Supports simultaneous detection and capture of human body, face and vehicle
Gets 7 face features, 13 human body features and 2 vehicle features
- Face Capture
Detects up to 60 faces simultaneously
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°
Uploads face with background and closed-up face pictures
- Face Comparison
Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.
Supports face library encryption
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- People Counting
Supports crossline people counting,
Supports counting, displaying and exporting the people flow data of entering and exiting. (The data is stored in the flash.),
The real-time people flow data is displayed on the screen. ,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°.,
Uploads face with background and closed-up face picture.,
Supports real-time uploading and uploading by statistic cycle
- Queue Management
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis.
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Heat Map
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.
- Hard Hat Detection
Detects up to 30 human targets simultaneously
Supports up to 4 shield regions
- MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
- Regional People Counting
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
- On/Off Duty Detection
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection
Supports parameter settings: person on duty, absence duration
- General
- Power
12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295 A, max. 16.8 W
- Dimension
Without -Y: Ø144 × 347 mm (Ø5.7" × 13.7\")
With -Y: Ø140 × 351 mm (Ø5.5 × 13.8\") "
- Package Dimension405 × 190 × 180 mm (15.9" × 7.5" × 7.1")
- WeightApprox. 1950 g (4.2 lb.)
- With Package WeightApprox. 3070 g (6.7 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams
- HeaterYes
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
- Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
- Automotive And RailwayEN50121-4
- OtherPVC FREE
