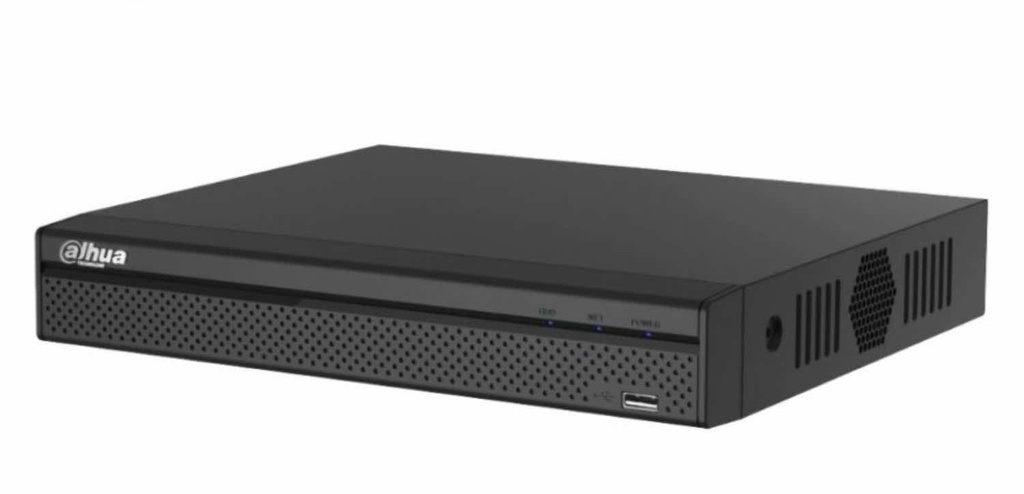

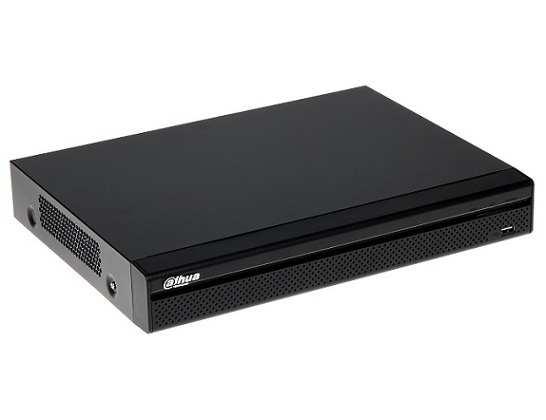

DVR 4 Channel Dahua DHI-HCVR5104HE-S3.
·Embedded processor.
·H.264+/H.264 video compression.
·Support HDCVI/CVBS/IP video inputs.
·Max 6/12/24 channels IP camera inputs, each channel up to 5MP.
·Max 24/48/96Mbps Incoming Bandwidth.
·Smart Search and Intelligent Video System.
Specification
Systems
- Main Processor : Embedded processor
- Operating System : Operating System
Video
- Input : 4 channel, BNC
- Analog : NTSC/PAL
- HDCVI : 1080P/720P HDCVI Camera
- IP : -
Audio
- Input : 4 channel, RCA
- Output : 1 channel, RCA
- Two-way Talk : Reuse audio input/output channel 1
Display :
- Interface : 1 HDMI, 1 VGA
- Resolution : 1920×1080, 1280×1024, 1280×720, 1024×768
- Display Split : 4
- Privacy Masking : 4 rectangular zones (each camera)
- OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
- Video/AudioCompression : H.264/G.711
- Record Rate / MainStream : 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
- Record Rate / ExtraStream : D1/CIF/QCIF(1~15fps)
- Bit Rate : 1~6144Kb/s
- Record Mode : Manual, Schedule(Regular(Continuous), MD), Stop
- Record Interval : 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
- Trigger Events : Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer &Screen tips
- Video Detection : Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
- Alarm Input : 4 channel
- Relay Output : 3 channel
- Intelligent Video (Optional) : Tripwire, Intrusion, Abandoned/Missing, Face Detection
Playback & Backup
- Sync Playback : 1/4/9/16
- Search Mode : Time/Date, MD & Exact search (accurate to second)
- Playback Functions : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Nextcamera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital
- Backup Mode : USB Device/Internal SATA burner/Network
Network
- Ethernet : RJ-45 port(10/100M/1000M)
- Network Functions : HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE,DDNS, FTP, IP Filter, SNMP, P2P
- Max. User Access : 128 users
- Smart Phone : iPhone, iPad, Android, Windows Phone
Storage
- Internal HDD : 1 SATA port, up to 6TB
Auxiliary Interface
- USB Interface : 2 ports (1 Rear USB3.0, 1Front USB2.0)
- RS485 : 1 port, For PTZ Control
General
- Power Supply : DC12V/2A
- Power Consumption : 10W(without HDD)
- Working Environment : -10°C ~+55°C / 10%~90%RH / 86~106kpa
- Dimension (W×D×H) : Mini 1U, 325mm×255mm×55mm
- Weight : 1.5KG(without HDD)
