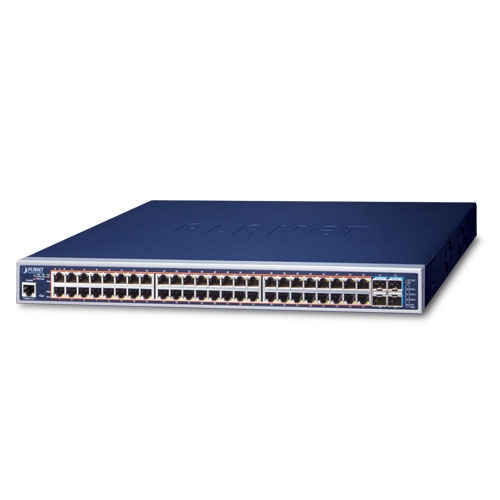

L3 48-Port(101001000T)802.3at PoE + 4-Port 10G SFP + Managed Switch - Planet GS-5220-48P4X.
Overview:
IPv6 Routing and 10G Ethernet Switch Solutions with PoE Plus for SMBs
PLANET GS-5220-48P4X high-density, Layer 3 Managed PoE Switch series features PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in Layer 3 dynamic OSPFv2 and static routing capability along with 48 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and 4 additional 10G SFP+ uplink slots. With a total power budget of up to 400/720watts for different kinds of PoE applications, the GS-5220-48P4X series provides a quick, safe and cost-effective PoE network solution for small businesses and enterprises.
The GS-5220-48P4X series can handle extremely large amounts of data in a secure topology linking to deploying Power over Ethernet networks, data center/service provider backbone or high capacity servers. It can work with a 10Gbps SFP+ server adapter to help SMBs build the 10Gbps Ethernet network providing 10Gbps NAS (Network Attached Storage) or heavy transmission of video streaming service.
Layer 3 Routing Support
The GS-5220-48P4X series enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.
Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. The SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
Features;
Physical Port
48 10/100/1000BASE-T Gigabit RJ45 copper ports with 48-port IEEE 802.3af/at PoE+ injector function
4 10GBASE-SR/LR SFP+ slots, compatible with 1000/2500BASE-SX/LX/BX SFP
RJ45 console interface for switch basic management and setup
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 48 ports of IEEE 802.3af/IEEE 802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters in standard mode and 200m in extended mode
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE admin-mode control
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
Sequence port PoE
PoE extension
Intelligent PoE features
Temperature threshold control
PD alive check
PoE schedule
Layer 2 Features:
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast/Multicast/Unknown unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 4K VLANs groups, out of 4094 VLAN IDs
Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
GVRP (GARP VLAN Registration Protocol)
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 26 trunk groups with 4 ports for each trunk group
Up to 80Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)
Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Link Layer Discovery Protocol (LLDP)
Supports G.8032 ERPS (Ethernet Ring Protection Switching)
Layer 3 Features
IP dynamic routing protocol supports OSPFv2
IPv4/IPv6 hardware static routing
Routing interface provides per VLAN routing mode
IP interfaces (Max. 128 VLAN interfaces)
Routing table (Max. 128 routing entries)
Quality of Service
Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
TOS/DSCP/IP precedence of IPv4/IPv6 packets
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing on the switch port
DSCP remarking
Multicast
Supports IPv4 IGMP snooping v1, v2 and v3
Supports IPv6 MLD snooping v1 and v2
Querier mode support
IPv4 IGMP snooping port filtering
IPv6 MLD snooping port filtering
Multicast VLAN Registration (MVR) support
Security
Authentication
IEEE 802.1x port-based/MAC-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers
TACACS+ login users access authentication
RADIUS/TACACS+ users access authentication
Guest VLAN assigns clients to a restricted VLAN with limited services
Access Control List
IP-based Access Control List (ACL)
MAC-based Access Control List
Source MAC/IP address binding
DHCP Snooping to filter untrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
IP address access management to prevent unauthorized intruder
Management
IPv4 and IPv6 dual stack management
Switch Management Interfaces
Console/Telnet Command Line Interface
Web switch management
SNMP v1, v2c, and v3 switch management
SSHv2, TLSv1.2 secure access
SNMP Management
Four RMON groups (history, statistics, alarms and events)
SNMP trap for interface Link Up and Link Down notification
IPv6 IP address/NTP/DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP/TFTP
Reset button for system reboot or reset to factory default
Dual images
DHCP Relay and DHCP Option 82
DHCP Server
User Privilege levels control
NTP (Network Time Protocol)
Network Diagnostic
ICMPv6/ICMPv4 remote ping
Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
SFP-DDM (Digital Diagnostic Monitor)
SMTP/Syslog remote alarm
System Log
PLANET Smart Discovery Utility for deployment management
PLANET UNI-NMS (Universal Network Management) and Smart Discovery Utility for deployment management
Smart fan with speed control

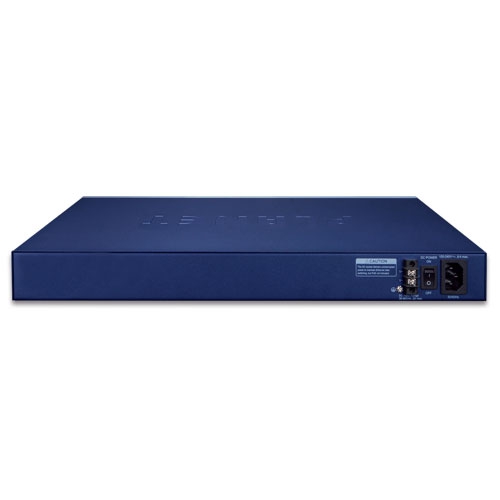

Redundant Power System (GS-5220-48P4XR and GS-5220-48PL4XR)
Redundant 100~240V AC/36-60V DC dual power
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply
Fault tolerance and resilience
| Hardware Specifications | |||||
|---|---|---|---|---|---|
| Copper Ports | 48 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports | ||||
| SFP+ Slots | 4 10GBASE-SR/LR SFP+ interfaces (Port-49 to Port-52) Compatible with 1000/2500BASE-SX/LX/BX SFP transceiver | ||||
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) | ||||
| SDRAM | 512Mbytes | ||||
| Flash Memory | 64Mbytes | ||||
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default | ||||
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height | ||||
| Weight |
| ||||
| Power Consumption |
| ||||
| Power Requirements – AC | Power Requirements – AC
| ||||
| Power Requirements – DC |
| ||||
| ESD Protection | 6KV DC | ||||
| Fan | 3 smart fans | ||||
| LED | System: - SYS (Green) - AC/PWR (Green) - Ring (Green) - DC (Green) (GS-5220-48PL4XR Only) - Fan1/2/3 Alert (Red) - PoE PWR Alert (Red) PoE Ethernet Interfaces (Port-1 to Port-48): - PoE-in-use (Amber) Ethernet Interfaces (Port-1 to Port-48): - 1000 LNK/ACT (Green), 10/100 LNK/ACT (Amber) 1/2.5/10G SFP+ Interfaces (Port-49 to Port-52): - 1G/2.5G (Green), 10G (Amber) | ||||
| Switching | |||||
| Switch Architecture | Store-and-Forward | ||||
| Switch Fabric | 176Gbps/non-blocking | ||||
| Throughput | 130Mpps@64Bytes | ||||
| Address Table | 16K entries, automatic source address learning and aging | ||||
| Shared Data Buffer | 32M bits | ||||
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex | ||||
| Jumbo Frame | 10K bytes | ||||
| Power over Ethernet | |||||
| PoE Standard | IEEE 802.3af/802.3at PoE PSE | ||||
| PoE Power Supply Type | End-span | ||||
| PoE Power Output | Per port 54V DC, 36 watts (max.) | ||||
| Power Pin Assignment | End-span: 1/2(+), 3/6(-) | ||||
| PoE Power Budget |
| ||||
| PoE Ability PD @ 7 watts |
| ||||
| PoE Ability PD @ 15 watts |
| ||||
| PoE Ability PD @ 30 watts |
| ||||
| PoE Management | |||||
| Active POE device alive detects | Yes | ||||
| PoE Power Recycle | Yes, daily or predeinded schedule | ||||
| PoE Schedule | 4 schedule profiles | ||||
| PoE System Management | System PoE Admin control Total PoE power budget control Auto power input and PoE budget control PoE Legacy mode Over-temperature threshold alarm PoE usage threshold alarm | ||||
| Layer 3 Functions | |||||
| IP Interfaces | Max. 128 VLAN interfaces | ||||
| Routing Table | Max. 128 routing entries | ||||
| Routing Protocols | IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing | ||||
| Layer 2 Management Functions | |||||
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable | ||||
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status | ||||
| Port Mirroring | TX/RX/Both Many-to-1 monitor | ||||
| VLAN | 802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 4K VLAN groups, out of 4095 VLAN IDs | ||||
| Link Aggregation | IEEE 802.3ad LACP/static trunk 26 groups with 4 port per trunk | ||||
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) | ||||
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet | ||||
| IGMP Snooping | IGMP (v1/v2/v3) snooping IGMP querier mode support Up to 255 multicast groups | ||||
| MLD Snooping | MLD (v1/v2) snooping MLD querier mode support Up to 255 multicast groups | ||||
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps | ||||
| Security Functions | |||||
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries | ||||
| Security | Port Security IP source guard Dynamic ARP inspection Command line authority control based on user level | ||||
| AAA | RADIUS client | ||||
| Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication | ||||
| Switch Management | |||||
| Basic Management Interfaces | Console; Telnet Web browser SNMP v1, v2c | ||||
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 | ||||
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility | ||||
| Event Management | Remote Syslog Local System log SMTP | ||||
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB | ||||
| Standards Conformance | |||||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||||
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 ITU G.8032 ERPS Ring ITU-T G.8032 ERPS Ring | ||||
| Environment | |||||
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) | ||||
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) | ||||
| Hardware Specifications | |||||
|---|---|---|---|---|---|
| Copper Ports | 48 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports | ||||
| SFP+ Slots | 4 10GBASE-SR/LR SFP+ interfaces (Port-49 to Port-52) Compatible with 1000/2500BASE-SX/LX/BX SFP transceiver | ||||
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) | ||||
| SDRAM | 512Mbytes | ||||
| Flash Memory | 64Mbytes | ||||
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default | ||||
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height | ||||
| Weight |
| ||||
| Power Consumption |
| ||||
| Power Requirements – AC | Power Requirements – AC
| ||||
| Power Requirements – DC |
| ||||
| ESD Protection | 6KV DC | ||||
| Fan | 3 smart fans | ||||
| LED | System: - SYS (Green) - AC/PWR (Green) - Ring (Green) - DC (Green) (GS-5220-48PL4XR Only) - Fan1/2/3 Alert (Red) - PoE PWR Alert (Red) PoE Ethernet Interfaces (Port-1 to Port-48): - PoE-in-use (Amber) Ethernet Interfaces (Port-1 to Port-48): - 1000 LNK/ACT (Green), 10/100 LNK/ACT (Amber) 1/2.5/10G SFP+ Interfaces (Port-49 to Port-52): - 1G/2.5G (Green), 10G (Amber) | ||||
| Switching | |||||
| Switch Architecture | Store-and-Forward | ||||
| Switch Fabric | 176Gbps/non-blocking | ||||
| Throughput | 130Mpps@64Bytes | ||||
| Address Table | 16K entries, automatic source address learning and aging | ||||
| Shared Data Buffer | 32M bits | ||||
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex | ||||
| Jumbo Frame | 10K bytes | ||||
| Power over Ethernet | |||||
| PoE Standard | IEEE 802.3af/802.3at PoE PSE | ||||
| PoE Power Supply Type | End-span | ||||
| PoE Power Output | Per port 54V DC, 36 watts (max.) | ||||
| Power Pin Assignment | End-span: 1/2(+), 3/6(-) | ||||
| PoE Power Budget |
| ||||
| PoE Ability PD @ 7 watts |
| ||||
| PoE Ability PD @ 15 watts |
| ||||
| PoE Ability PD @ 30 watts |
| ||||
| PoE Management | |||||
| Active POE device alive detects | Yes | ||||
| PoE Power Recycle | Yes, daily or predeinded schedule | ||||
| PoE Schedule | 4 schedule profiles | ||||
| PoE System Management | System PoE Admin control Total PoE power budget control Auto power input and PoE budget control PoE Legacy mode Over-temperature threshold alarm PoE usage threshold alarm | ||||
| Layer 3 Functions | |||||
| IP Interfaces | Max. 128 VLAN interfaces | ||||
| Routing Table | Max. 128 routing entries | ||||
| Routing Protocols | IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing | ||||
| Layer 2 Management Functions | |||||
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable | ||||
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status | ||||
| Port Mirroring | TX/RX/Both Many-to-1 monitor | ||||
| VLAN | 802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 4K VLAN groups, out of 4095 VLAN IDs | ||||
| Link Aggregation | IEEE 802.3ad LACP/static trunk 26 groups with 4 port per trunk | ||||
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) | ||||
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet | ||||
| IGMP Snooping | IGMP (v1/v2/v3) snooping IGMP querier mode support Up to 255 multicast groups | ||||
| MLD Snooping | MLD (v1/v2) snooping MLD querier mode support Up to 255 multicast groups | ||||
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps | ||||
| Security Functions | |||||
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries | ||||
| Security | Port Security IP source guard Dynamic ARP inspection Command line authority control based on user level | ||||
| AAA | RADIUS client | ||||
| Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication | ||||
| Switch Management | |||||
| Basic Management Interfaces | Console; Telnet Web browser SNMP v1, v2c | ||||
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 | ||||
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility | ||||
| Event Management | Remote Syslog Local System log SMTP | ||||
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB | ||||
| Standards Conformance | |||||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||||
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 ITU G.8032 ERPS Ring ITU-T G.8032 ERPS Ring | ||||
| Environment | |||||
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) | ||||
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) | ||||
