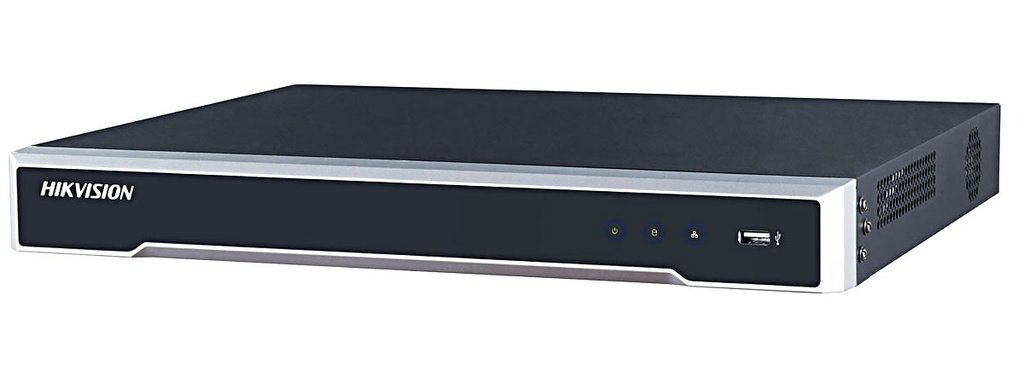

8-ch 1U 8 PoE 4K NVR - Hikvision DS-7608NI-Q2/8P.
Up to 8-ch IP camera inputs.
H.265+/H.265/H.264+/H.264 video formats.
Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity.
Up to 80 Mbps incoming bandwidth.
- Motion Detection 2.0
- Human/Vehicle Analysis4
- Video And Audio
- IP Video Input8-ch
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Incoming Bandwidth80 Mbps
- Outgoing Bandwidth80 Mbps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
- Synchronous Playback8-ch
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface8-ch
- Power≤ 80W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA2
- CapacityUp to 8TB capacity for each disk
- USB Interface2 × USB 2.0
- General
- Power Supply48V| ,2.5A MAX
- Consumption≤ 15W
- Working Temperature-10 to +55º C (+14 to +131º F)
- Working Humidity10 to 90 %
- Chassis1U chassis
- Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
- ≤ 2.6 kg (5.7 lb)
- Motion Detection 2.0
- Human/Vehicle Analysis4
- Video And Audio
- IP Video Input8-ch
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Incoming Bandwidth80 Mbps
- Outgoing Bandwidth80 Mbps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
- Synchronous Playback8-ch
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface8-ch
- Power≤ 80W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA2
- CapacityUp to 8TB capacity for each disk
- USB Interface2 × USB 2.0
- General
- Power Supply48V| ,2.5A MAX
- Consumption≤ 15W
- Working Temperature-10 to +55º C (+14 to +131º F)
- Working Humidity10 to 90 %
- Chassis1U chassis
- Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
- ≤ 2.6 kg (5.7 lb)
