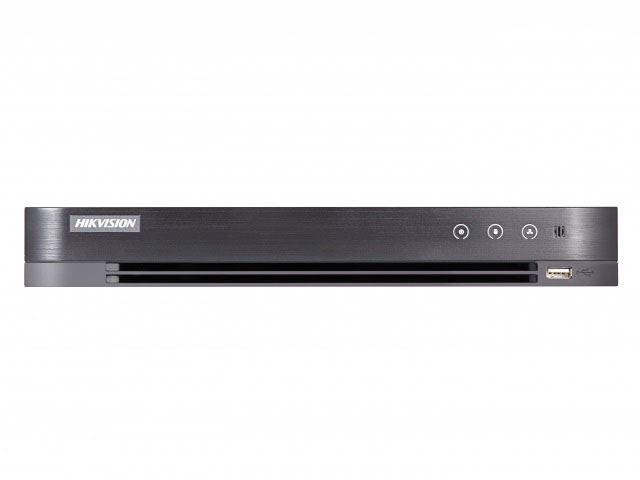

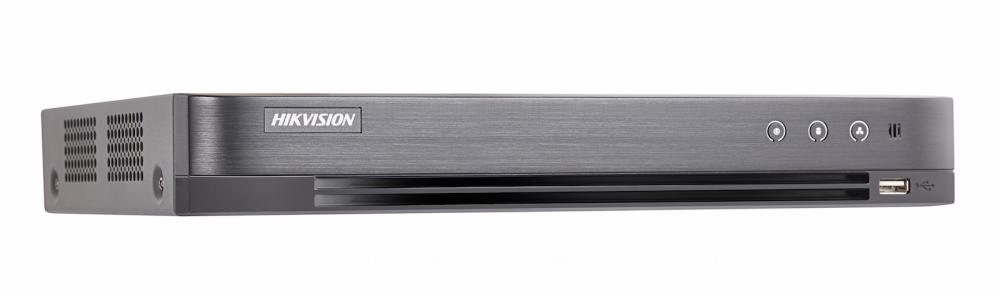

4-ch 5 MP 1U H.265 PoC DVR - Hikvision DS-7204HUHI-K1/P.
4 channels and 1 HDD 1U DVR.
Efficient H.265 pro+ compression technology.
Encoding ability up to 5 MP @ 12 fps.
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 8 network cameras can be connected.
Transmits both HDTVI video and power over the same coaxial cable.
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/,CIF,
- Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),*: 8 MP@8fps is only available for channel 1 of DS-7204HUHI-K1/P.,Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N),
- Video Bit Rate32 Kbps to 10 Mbps
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
- Video And Audio
- IP Video Input4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- HDMI/VGA Output1-ch, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz,
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback4-ch
- HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- VGA/HDMI Output1-ch, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz
- PoC Camera InputSupport Hikvision PoC camera,*: PoC access capability see Appendix.,
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480
- Network
- Remote Connections32
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface1, ,RJ45 10M/100M ,self-adaptive ,Ethernet interface,
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Alarm In/Out4/1
- USB Interface2 × USB 2.0
- Serial InterfaceRS-485 (half-duplex)
- General
- Power Supply48 VDC
- Working Temperature-10 ºC to +55 ºC (14 ºF to 131 ºF)
- Working Humidity10% to 90%
- Dimensions (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weights (Without HDD)≤ 1.5 kg (3.3 lb)
- Consumption (Without HDD)≤ 40 W
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/,CIF,
- Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),*: 8 MP@8fps is only available for channel 1 of DS-7204HUHI-K1/P.,Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N),
- Video Bit Rate32 Kbps to 10 Mbps
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
- Video And Audio
- IP Video Input4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- HDMI/VGA Output1-ch, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz,
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback4-ch
- HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- VGA/HDMI Output1-ch, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz
- PoC Camera InputSupport Hikvision PoC camera,*: PoC access capability see Appendix.,
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480
- Network
- Remote Connections32
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface1, ,RJ45 10M/100M ,self-adaptive ,Ethernet interface,
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Alarm In/Out4/1
- USB Interface2 × USB 2.0
- Serial InterfaceRS-485 (half-duplex)
- General
- Power Supply48 VDC
- Working Temperature-10 ºC to +55 ºC (14 ºF to 131 ºF)
- Working Humidity10% to 90%
- Dimensions (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weights (Without HDD)≤ 1.5 kg (3.3 lb)
- Consumption (Without HDD)≤ 40 W
