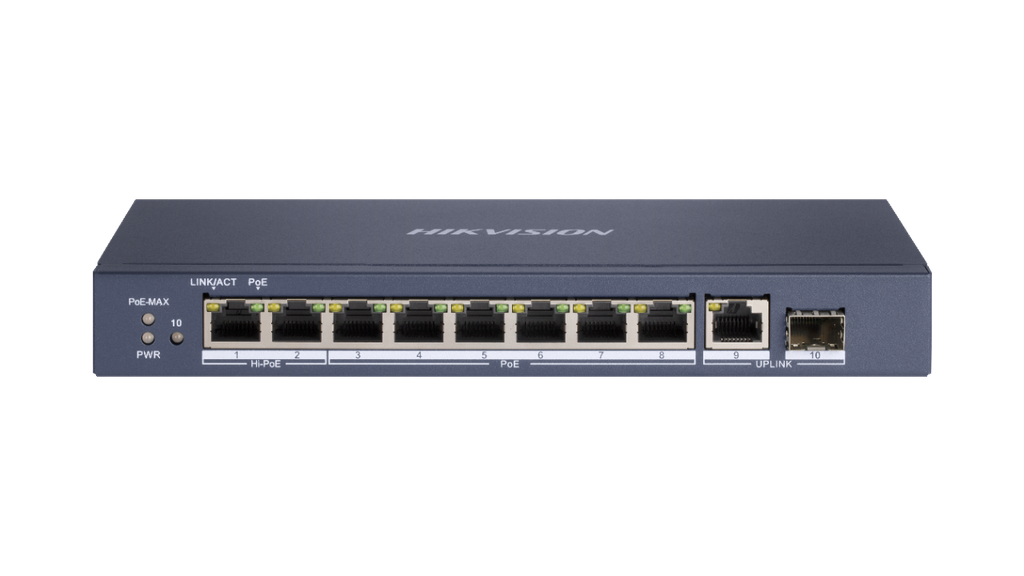

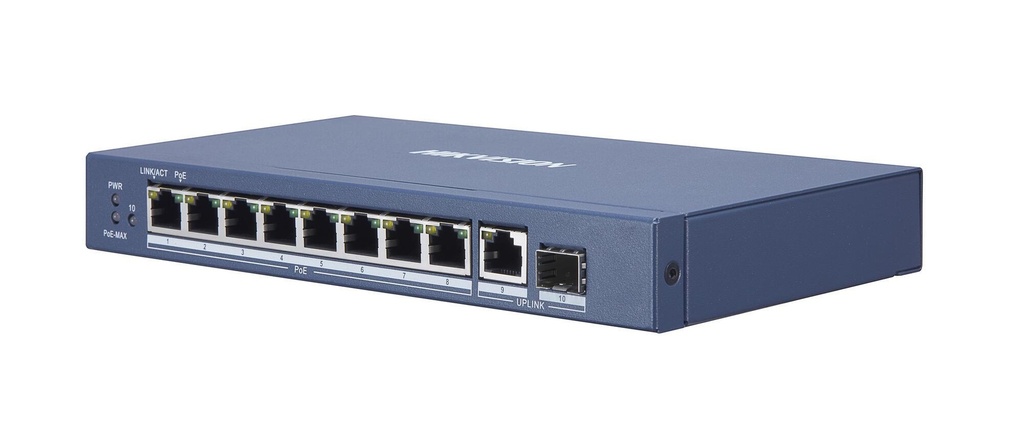

8 Port Gigabit Unmanaged POE Switch - Hikvision DS-3E0510HP-E.

6 × gigabit PoE ports, 2 × gigabit Hi-PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port.

IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).

IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.

6 KV surge protection for PoE ports.

Up to 300 m long-range transmission.

PoE watchdog to auto detect and restart the cameras that do not respond.

Port isolation to improve network security.

Gigabit network access design.

Wire-speed forwarding.

Store-and-forward switching.

Solid high-strength metal shell.

Reliable fan-free design.

  • Network Parameters
  • Ports6 × Gigabit PoE ports, 2 × Gigabit Hi-PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • Working ModeStandard mode (default), Extend mode, Isolation mode, PoE watchdog mode
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Forwarding ModeStore-and-forward switching
  • MAC Address Table4 K
  • Switching Capacity20 Gbps
  • Packet Forwarding Rate14.88 Mpps
  • Internal Cache1.5 Mbits
  • Ports For Long-Distance TransmissionPorts 7 and 8
  • PoE Power Supply
  • PoE Standard

    Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

    Ports 3 to 8: IEEE 802.3af, IEEE 802.3at

  • PoE Power Pin

    Ports 1 to 2 and 7 to 8: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

    Ports 3 to 6: End-span: 1/2(-), 3/6(+)

  • PoE PortPorts 1 to 8
  • Max. Port Power

    Ports 1 and 2: 90 W

    Ports 3 to 8: 30 W

  • PoE Power Budget110 W
  • Dialing Function
  • Long RangePorts 7 and 8: up to 300 m.
  • Port IsolationPorts 1 to 8: port isolation mode to improve network security.
  • PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
  • General
  • Dimensions (W × H × D)217.6 mm × 108.55 mm × 27.8 mm (8.57” × 4.27” × 1.09”)
  • ShellMetal material, fan-free design
  • Gross Weight1.410 kg (3.11 lb)
  • Net Weight0.59 kg (1.30 lb)
  • Operating Temperature-10 °C to 40 °C (14 °F to 104 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply54 VDC, 2.22 A
  • Power Consumption In Idle< 10 W
  • Max. Power Consumption120 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
