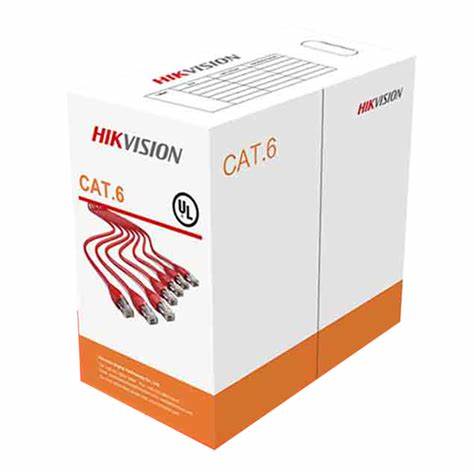

305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm, Orange) - Hikvision DS-1LN6U-SC0.
Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.
Compliant with RoHS 2.0
Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)
Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
- General
- Rip-CordYes
- CategoryCat.6
- Sheath PrintingHIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
- Reference StandardISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
- Fire ResistanceNo
- SeparatorYes
- Conductor
- MaterialSolid-Bare Copper (99.95%)
- Diameter0.55 ± 0.005 mm, 23 AWG
- Insulation
- MaterialHDPE
- Diameter0.98 ± 0.05 mm
- Sheath Physical Properties
- Before Aging
Tensile strength ≥ 13.5 Mpa
Elongation ≥ 150%
- Aging Period100°C × 24h × 10d
- After Aging
Tensile strength ≥ 12.5 Mpa
Elongation ≥ 125%
- Cold Bend-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
- Electrical Characteristics(20℃)
- 1.0-250.0 MHz Impedance
100 ± 15 Ω @ ≤ 100 MHz
100 ± 25 Ω @100-250 MHz
- 1.0-250.0 Mhz Delay Skew≤ 45 ns/100 m
- DC Resistance≤ 9.38 Ω/100 m
- DC Conductor Resistance Unbalance≤ 5.0%
- Package Dimension400 mm (W) × 400 mm (H) × 240 mm (D) (15.75" × 15.75" × 9.45")
- 12.3 ± 0.5kg
- Cable Length(305 ± 1.5) m
- Ambient Temperature-20°C to 75°C (-4°F to 167°F)
- Operating Voltage60 V
- Sheath
- Thickness0.50 ± 0.10 mm
- MaterialPVC
- ColorOrange
- Diameter6.00 ± 0.30 mm
