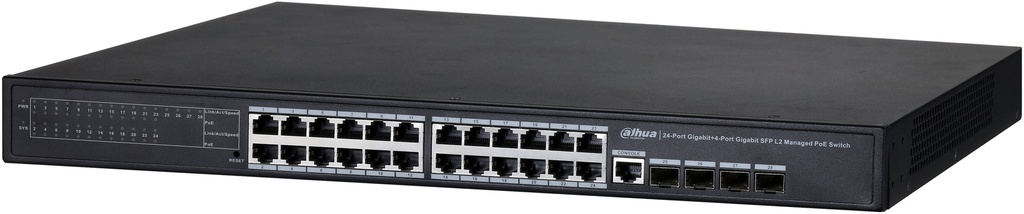

Dahua/Switch 24 Port/MOI/370W

Price:

1,895.00 QR
  2. Shop
  3. Dahua/Switch 24 Port/MOI/370W
Panatron/PBX/24 Port
Panatron/PBX/24 Port
2,850.00 QR
2,850.00 QR

Dahua/Switch 24 Port/MOI/370W

https://tamyeez.odoo.com/web/image/product.template/8585/image_1920?unique=0139cdf
(0 review)

1,895.00 QR 1895.0 QAR 1,895.00 QR

1,895.00 QR

Not Available For Sale

This combination does not exist.

Contact Us
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders
Switch 24 Port/MOI - Dahua PFS4428-24GT-370.
24-Port PoE Gigabit Managed Switch,

> Layer 2 network management PoE switch .

> Support IEEE802.3af, IEEE802.3at standard.

> Network Redundancy: STP/RSTP/MSTP.

> Support IPv4/IPv6, and DHCP.

> Network management based on SNMP.

> Configuration: Web, Telnet, CLI Command.

> QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism.

> Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/ v3, HTTPS, and SSH/SSL.

> Large data cache(4M), real-time transmission.

> MAC auto study and aging, MAC address list capacity is 8K.

Technical Specification

Model

DH-PFS4428-24GT-370

Ethernet Port

24*10/100/1000 Base-T (PoE power supply)

4*1000 Base-X

PoE Power Consumption

Port1-24 ≤30W, Total≤370W

PoE Protocol

IEEE802.3af, IEEE802.3at

Switching Capacity

56Gbps

Packet Forwarding Rate

41.66Mpps

Packet Buffer Memory

4.1Mb

Application Humidity

10%~90%

Power

AC100-240V, 50/60Hz

Lightning Protection

Common Mode 2KV

Working Temperature

0°C~45°C

Weight

4.37kg

Dimension(W×D×H)

440mm x330mm x44mm

Accessories

Model

PFT3950

1.25G 850nm,500m,LC, Multi-mode

PFT3960

1.25G 1310/1550nm,20km,LC, Single-mode

PFT3970

1.25G 1550/1310nm,20km,LC, Single-mode

Service Characteristics

System

Username / password: admin/admin123

IP Address :192.168.1.110/24

PoE Budget

Total≤370W

MAC Table

8K

SNTP

Support

DHCP

Support DHCP client/Relay

Support DHCP snooping

VLAN

802.1Q Standard VLAN

Port Aggregation

Manual aggregation/LACP

Mirroring

Many-to-one port mirroring

Flow Control

Half-duplex based on back pressure type control;

Full duplex based on PAUSE frame

Multicast

IGMP Snooping v2/v3

Security Features

Broadcast / Uncast / Multicast Storm Control, IEEE 802.1x, DHCP Snooping(IP, MAC, Port)

Spanning tree

Support STP/RSTP/MSTP

LLDP

Support

MAC Table

Support MAC address table configuration

QoS

WRR (Weighted Round Robin)

Port based QoS

IEEE 802.1p Class of Service

DSCP-based QoS

QoS basic mode

QoS advanced mode (Policy based)

System Maintenance

Support the configuration file upload/download

Support the updated packet upload

System log

Network Management

WEB, Telnet, SSH, SNMP
