Dahua/18-Port Managed Switch with 8-Port ePoE/MOI Approved

Price:

1,375.00 QR


Dahua/10-Port Unmanaged Desktop Gigabit Switch with 8-Port PoE/MOI Approved
Dahua/10-Port Unmanaged Desktop Gigabit Switch with 8-Port PoE/MOI Approved
595.00 QR
595.00 QR
Dahua/1-Port Ethernet Switch (Unmanaged)2-layer industrial level Ethernet media converter/MOI Approved
Dahua/1-Port Ethernet Switch (Unmanaged)2-layer industrial level Ethernet media converter/MOI Approved
175.00 QR
175.00 QR

Dahua/18-Port Managed Switch with 8-Port ePoE/MOI Approved

https://tamyeez.odoo.com/web/image/product.template/10770/image_1920?unique=8882b97
(0 review)

1,375.00 QR 1375.0 QAR 1,375.00 QR

1,375.00 QR

Not Available For Sale


This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

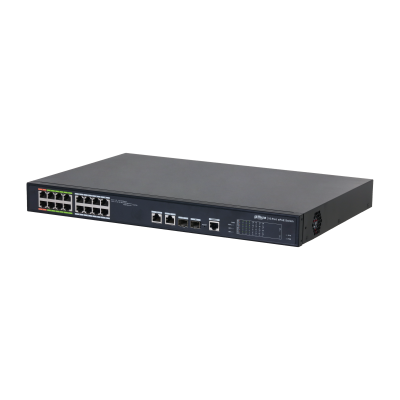

Dahua/18-Port Managed Switch with 8-Port ePoE/MOI Approved.
LR2218-16ET-240
18-Port Managed Switch with 8-Port ePoE & 8-Port PoE,

* The parameters and datasheets below can only be applied to V2.0 (version 2.0)

> Layer-two web managed ePoE switch.

> Three self-adaptive transmission modes which are IEEE, E100 and E10.

> Long distance PoE transmission up to 800 m with ePoE technology.

> Both twisted-pair transmission and coaxial cable transmission.

> IEEE802.3af, IEEE802.3at and Hi-PoE compliant.

> PoE management, Green PoE, Legacy Support.

> Manage through iLinksView, web client, and SNMP softwares.

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port1–16: 16 × RJ–45 10/100 Mbps;
Port17–18: 2 × RJ–45 10/100/1000 Mbps;
Port17–18: 2 × SFP 1000 Mbps (combo)

Debugging

1 × Console port

Reset Button

1

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz, 6 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Full load: 240 W

Performance

Layer

Layer 2

Management Type

Yes

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

5.36 Mpps

Packet Buffer Size

2.75 Mbit

MAC Table Size

4K

VLAN Number

31

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power

Port 1–2 ≤60 W;
Port 3–16 ≤30 W;
Total ≤240 W

PoE Power Consumption Management

PoE power consumption management;
PoE power on/off;
Turns off PoE if overload is detected;
Green PoE

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

ePoE

Yes

Spanning Tree Protocol

STP/RSTP

VLAN Function

Port-based VLAN

Link Aggregation

Static link aggregation
LACP

IEEE 802.3x Flow Control

Yes

Multicast

IGMP Snooping v1/v2

DHCP Function

DHCP Client

Security

Multi-level user management and password; protection;
802.1X;
RADIUS;
Port isolation

QoS/ACL

SP/WRR queue scheduling

Equipment Management

SNMPv1/v2/v3;
System logs, and multi-level alarms;
LLDP

General

Statics Protection

Air discharge: 8 kV;
contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV;
differential mode: 2 kV

Net Weight

3.14 kg (6.92 lb)

Gross Weight

4.12 kg (9.08 lb)

Product Dimensions

440 mm × 300 mm × 44 mm
(17.32"" × 11.81"" × 1.73"") (L × W × H)

Packaging Dimensions

565 mm × 530 mm × 415 mm (22.24" × 20.87" × 16.34") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; rack mount

Certifications

CE; FCC

Transmission Performance:

ePoE Power Supply Specifications (CAT)

Cable Length (m)

Communication Bandwidth (Mbps)

PoE Max Load Capacity (W)

Hi-PoE Max Load Capacity (W)

Network Operating Mode

100

100

25.5

53

IEEE/E100

200

100

25.5

47

E100

300

100

25.5

32

E100

400

10

23

26

E10

500

10

20

20

E10

800

10

13

13

E10

ePoE switch supply voltage 53V.

CAT6, max. DC resistance < 10Ω/100m.

ePoE Power Supply Specifications (RG59 Coaxial Cable)

Cable Length (m)

Communication Bandwidth (Mbps)

PoE Max Load Capacity (W)

Hi-PoE Max Load Capacity (W)

Network Operating Mode

100

100

25.5

52

IEEE/E100

200

100

25.5

48

E100

300

100

25.5

30

E100

400

100

20

23

E100

500

10

16

16

E10

800

10

10

10

E10

1000

10

8

8

E10

ePoE switch supply voltage 53V.

RG-59, max. DC resistance < 5Ω/100m.

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port1–16: 16 × RJ–45 10/100 Mbps;
Port17–18: 2 × RJ–45 10/100/1000 Mbps;
Port17–18: 2 × SFP 1000 Mbps (combo)

Debugging

1 × Console port

Reset Button

1

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz, 6 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Full load: 240 W

Performance

Layer

Layer 2

Management Type

Yes

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

5.36 Mpps

Packet Buffer Size

2.75 Mbit

MAC Table Size

4K

VLAN Number

31

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power

Port 1–2 ≤60 W;
Port 3–16 ≤30 W;
Total ≤240 W

PoE Power Consumption Management

PoE power consumption management;
PoE power on/off;
Turns off PoE if overload is detected;
Green PoE

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

ePoE

Yes

Spanning Tree Protocol

STP/RSTP

VLAN Function

Port-based VLAN

Link Aggregation

Static link aggregation
LACP

IEEE 802.3x Flow Control

Yes

Multicast

IGMP Snooping v1/v2

DHCP Function

DHCP Client

Security

Multi-level user management and password; protection;
802.1X;
RADIUS;
Port isolation

QoS/ACL

SP/WRR queue scheduling

Equipment Management

SNMPv1/v2/v3;
System logs, and multi-level alarms;
LLDP

General

Statics Protection

Air discharge: 8 kV;
contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV;
differential mode: 2 kV

Net Weight

3.14 kg (6.92 lb)

Gross Weight

4.12 kg (9.08 lb)

Product Dimensions

440 mm × 300 mm × 44 mm
(17.32"" × 11.81"" × 1.73"") (L × W × H)

Packaging Dimensions

565 mm × 530 mm × 415 mm (22.24" × 20.87" × 16.34") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; rack mount

Certifications

CE; FCC

Transmission Performance:

ePoE Power Supply Specifications (CAT)

Cable Length (m)

Communication Bandwidth (Mbps)

PoE Max Load Capacity (W)

Hi-PoE Max Load Capacity (W)

Network Operating Mode

100

100

25.5

53

IEEE/E100

200

100

25.5

47

E100

300

100

25.5

32

E100

400

10

23

26

E10

500

10

20

20

E10

800

10

13

13

E10

ePoE switch supply voltage 53V.

CAT6, max. DC resistance < 10Ω/100m.

ePoE Power Supply Specifications (RG59 Coaxial Cable)

Cable Length (m)

Communication Bandwidth (Mbps)

PoE Max Load Capacity (W)

Hi-PoE Max Load Capacity (W)

Network Operating Mode

100

100

25.5

52

IEEE/E100

200

100

25.5

48

E100

300

100

25.5

30

E100

400

100

20

23

E100

500

10

16

16

E10

800

10

10

10

E10

1000

10

8

8

E10

ePoE switch supply voltage 53V.

RG-59, max. DC resistance < 5Ω/100m.
