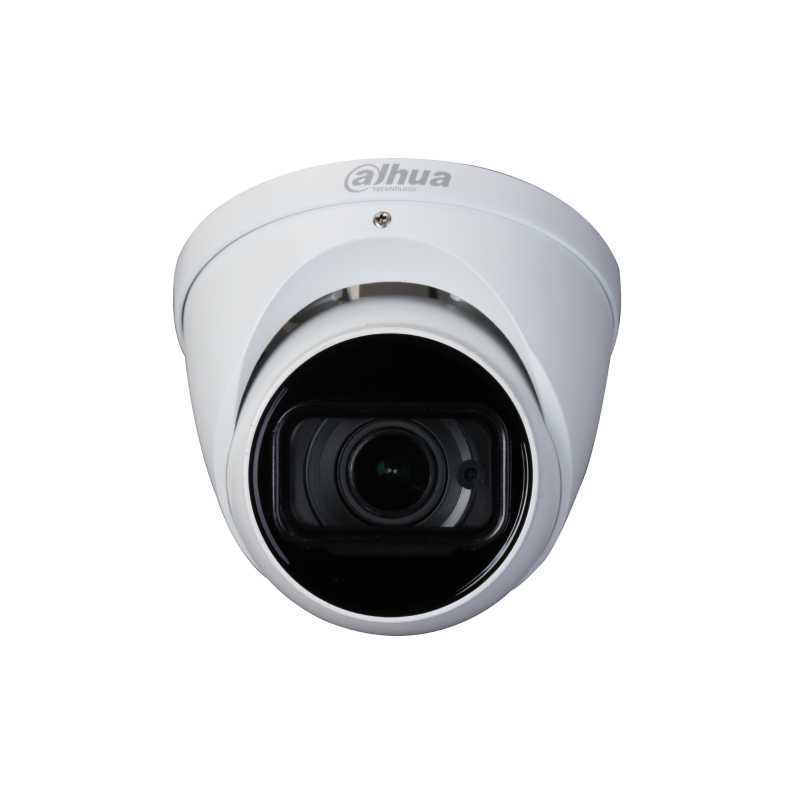

DH-HACHDW1801TP-ZA.
- Outdoor HDCVI Camera.
- Resolution 8MP (3840x2160).
- 15fps@4K, 20fps@5MP, 25/30fps@4MP.
- Multi-format support.
- Motorized lens 2.7-13.5mm.
- Built-in microphone.
- WDR Support(120dB).
- IR LED 60m (mechanical IR-cut filter).
- Power supply 12V.
Camera Type | HDCVI |
---|---|
Matrix | 1/2.7 CMOS |
Permission | 8MP (3840×2160) |
Frame rate | CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps CVBS: PAL/NTSC AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps |
Sensitivity, Lux | 0.03Lux/F1.8, 0Lux IR on |
Video output | 1 HD-TVI/AHD/CVI/CVBS |
Alarm inputs/outputs | No |
Audio Inputs/Outputs | Built-in microphone |
Focal length, mm | 2.7-13.5 |
Viewing angle° | horizontal: 105° – 33°, vertical: 56° – 18°, diagonal: 126° – 38° |
IR-illumination, m | 60 |
Smart IR | eat |
Day/night function | eat |
OSD menu | eat |
Illumination compensation | eat |
WDR | 120dB |
Signal amplification | eat |
Noise Reduction (DNR) | 2D/3D |
White Balance | eat |
Private Areas | eat |
Nutrition | 12V DC |
Consumption | 7.8W |
Operating temperature | -30°C ~ +60°C |
Degree of protection | IP67 |
Case material | metal |
Dimensions, mm | 122x104.8 |
Weight, g | 580 |
