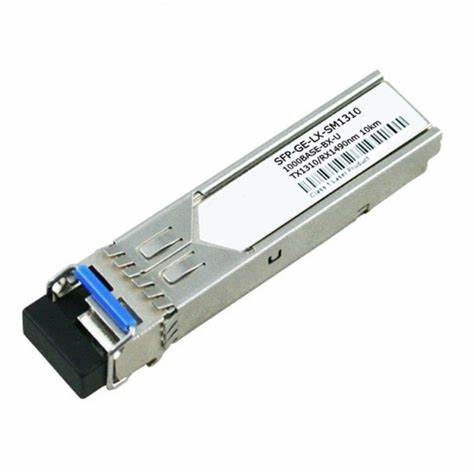

Optical Transceiver Single-Mode Module - HUAWEI SFP-GE-LX-SM1310.
Huawei SFP-GE-LX-SM1310 is a 1000BASE-LX 10km SFP transceiver module. The SFP-GE-LX-SM1310 transceiver module provides a low cost high-performance connection. The SFP-GE-LX-SM1310 is 100% compatible with all Huawei series switches and modules which support SFP transceivers.
SFP-GE-LX-SM1310 specifications
| Item | Value |
|---|---|
| Basic Information | |
| Module name | SFP-GE-LX-SM1310 |
| Part Number | 02315200 |
| Model | SFP-GE-LX-SM1310 |
| Form factor | eSFP |
| Application standard | 1000BASE-LX10/LH |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Transmission rate [bit/s] | 1 Gbit/s |
| Target transmission distance [km] | Single-mode fiber: 10 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1310 nm |
| Maximum Tx optical power [dBm] | -3.0 dBm |
| Minimum Tx optical power [dBm] | -9.0 dBm |
| Minimum extinction ratio [dB] | 9 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity [dBm] | -20.0 dBm |
| Overload power [dBm] | -3.0 dBm |
